Falcon SC71A SS Door Closer with Heavy Duty Spring-n-Stop Parallel Arm

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI Grade-1 certified
  • Includes spring-n-stop arm
  • Non-handed – parallel arm mount only

Available Options:

Clear

Falcon SC71A SS, SC70 Series Heavy Duty Closer, Spring-n-Stop Arm, Full Cover

Falcon SC70 Series heavy-duty closers are built for applications that demand reliable door control and easy maintenance. The SC70 Series closers are ANSI Grade 1, ADA compliant, and deliver tough performance at an unbeatable value. Choose the SC71A for interior or exterior doors in retail shops, restaurants, apartments, small offices, and a variety of other high-traffic applications.

Spring-n-stop arm, SC70A-3077SS: Non-handed, extra heavy-duty, forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.

  • Separate adjustable general speed, latch speed and backcheck
  • Comes standard with universal screw pack, including self reaming and tapping screws

Finish:

  • AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
  • DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)
  • MTBK, BHMA 622 – Matte Black
  • BR, BHMA 696 – Brass

Models: SC71A-SS-AL, SC71A-SS-BR, SC71A-SS-DKB, SC71A-SS-MTBK

Brand

Finishes

622 Matte Black, 689 Aluminum, 695 Dark Bronze, 696 Brass

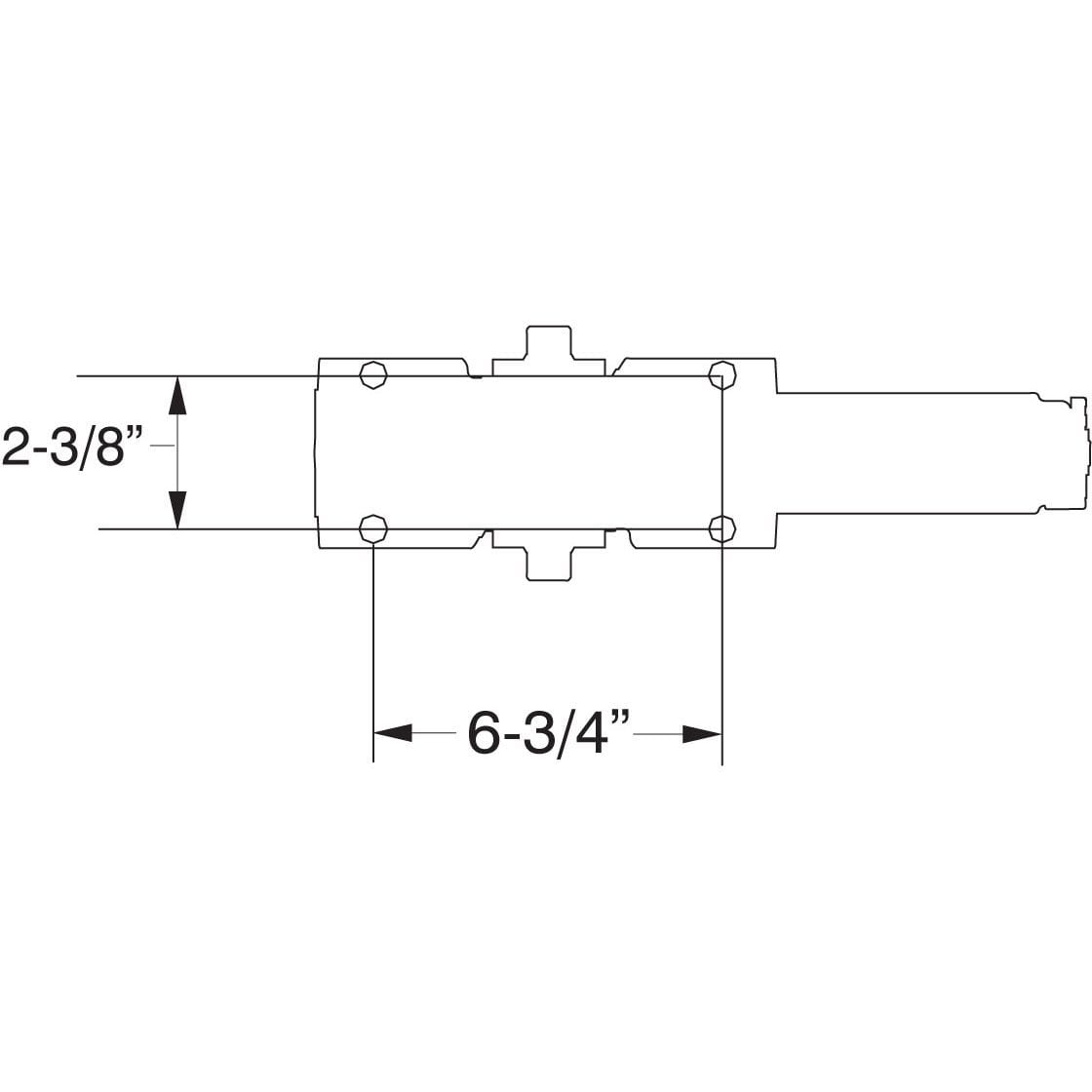

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Mounting Options

Parallel Arm (Push Side)

Usage

Heavy Duty

ANSI/BHMA Standard

Tested and certified under ANSI Standard A156.4 – Grade-1

Fire Rating

UL listed and compliant to UL10C and UBC 7-2

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

Full Cover
