MA621-DG
Falcon MA Series Mortise Lock
MA621-DG
Falcon MA Series Mortise Lock

Falcon MA621 DG Apartment Corridor Mortise Lock with Button Lockout Mortise Lock, Dane Lever, Gala Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • ANSI Function: F08/F10
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:
Clear

Product Overview

Falcon MA621 DG Apartment Corridor Mortise Lock with Button Lockout Mortise Lock, Dane Lever, Gala Rose

The MA Series lock delivers high performance at an affordable cost in an office, hospital, education, or other commercial projects. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks.

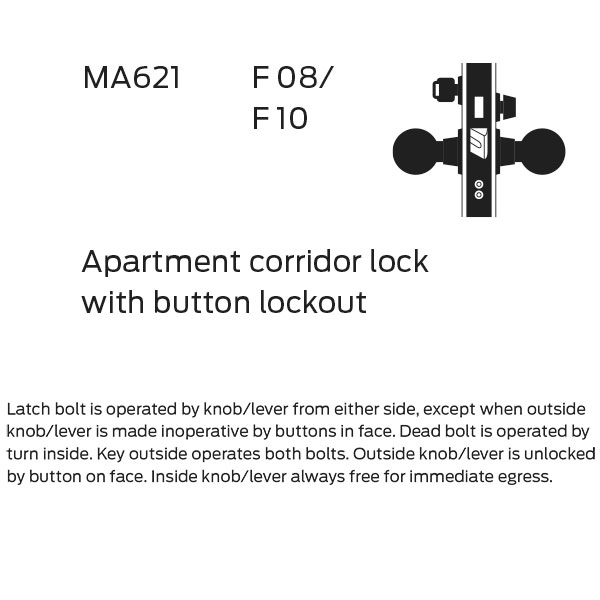

ANSI F08/F10 – Apartment corridor lock with button lockout: Latch bolt is operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face. Dead bolt is operated by turn inside. Key outside operates both bolts. Outside knob/lever is unlocked by button on face. Inside knob/lever always free for immediate egress.

  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Ability to easily re-hand the lock in the field
  • Conventional cylinder or (SFIC) small format interchangeable core housing (less core)

Models: MA621P-DG-605, MA621CP6-DG-605, MA621B-DG-605, MA621L-DG-605, MA621P-DG-606, MA621CP6-DG-606, MA621B-DG-606, MA621L-DG-606, MA621P-DG-613, MA621CP6-DG-613, MA621B-DG-613, MA621L-DG-613, MA621P-DG-622, MA621CP6-DG-622, MA621B-DG-622, MA621L-DG-622, MA621P-DG-626, MA621CP6-DG-626, MA621B-DG-626, MA621L-DG-626, MA621P-DG-630, MA621CP6-DG-630, MA621B-DG-630, MA621L-DG-630

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome, 630 Satin Stainless Steel
Cylinder

985 Mortise Cylinder (Falcon G Keyway), 985 Mortise Cylinder (Schlage C Keyway), 987 SFIC Mortise Cylinder Housing (Less Core), Less Cylinder (no cylinder)
Lock Function

Corridor
ANSI Function

F08, F10
ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Usage

Heavy Duty
Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Lever Design

DG Dane Gala
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Case

Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection
Deadbolt

1" throw, stainless steel with two 13/16" diameter hardened steel, free-turning, saw-resistant roller.
Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness

1-3/4"
Falcon_MA-Lock_Installation_Instructions Falcon_MA_Series_Service_Manual
