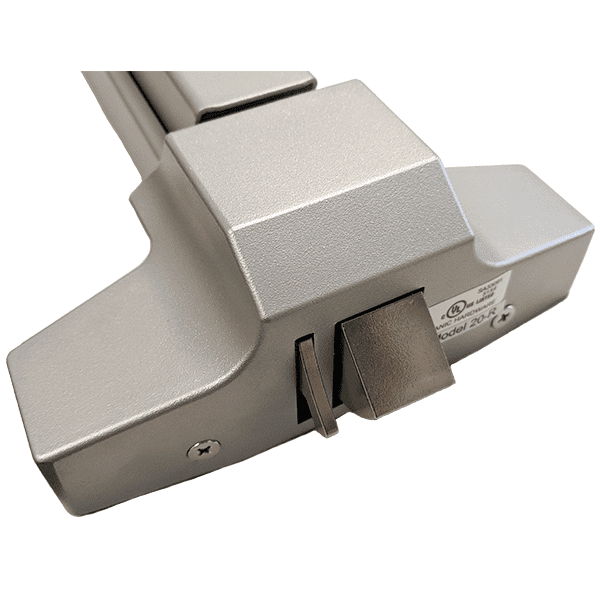

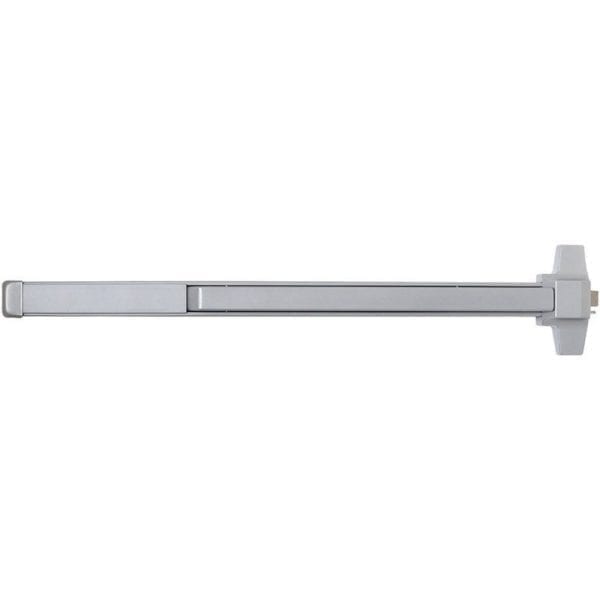

Falcon F-20-R Fire-Rated Rim Exit Device

Usually Ships: 2-3 Business Days
  • Standard Duty, ANSI Grade-1 Certified
  • UL Listed (3-hour fire-rated)
  • Exit only, outside trim sold separately

Available Options:


Faclon F-20-R Grade-1 Fire-Rated Rim Exit Device, 3ft., Exit Only

Falcon® prides itself on dependable, cost-effective products that meet or exceed life safety and building requirements. The Falcon 20 Series, pushbar exit devices are ideal for light-to-medium duty door applications, such as commercial, multi-family, office, and retail. This Grade-1, affordable exit device is offered in multiple functions, lever, and trim options. With the Falcon 20 Series, you’re choosing a quality performing, medium duty pushbar exit device with all metal construction at an unmatched value.

The Falcon 20 Series exit device is an affordable and reliable choice. A certified ANSI/BHMA A156.3-2014 Grade-1 exit device these pushbars are non-handed and will accommodate 161 door prep. The series also offers multiple functions and a full trim complement, including 161 key in lever.

  • EO = Exit Only (Outside Trim Sold Separately)
  • Durable, steel mechanism case construction
  • Standard features include scratch-resistant surfaces and built-in deadlocking
  • Roller Strike Standard
  • 3-1/2″ Minimum stile width


689 Aluminum (Powder Coated), US32D (630) Satin Stainless Steel


Light Duty

Stile Type

Wide (Standard)



ANSI Grade

Certified ANSI/BHMA A156.3-2014 Grade 1

Fire Rating

3 Hour UL Listed



Dogging Feature



Stainless steel, 3/4" throw – Deadlocking


Roller Strike


Universal hardware pack for wood and hollow metal

Door Applications

1-3/4″ Thick Hollow Metal Doors / Wood Doors
