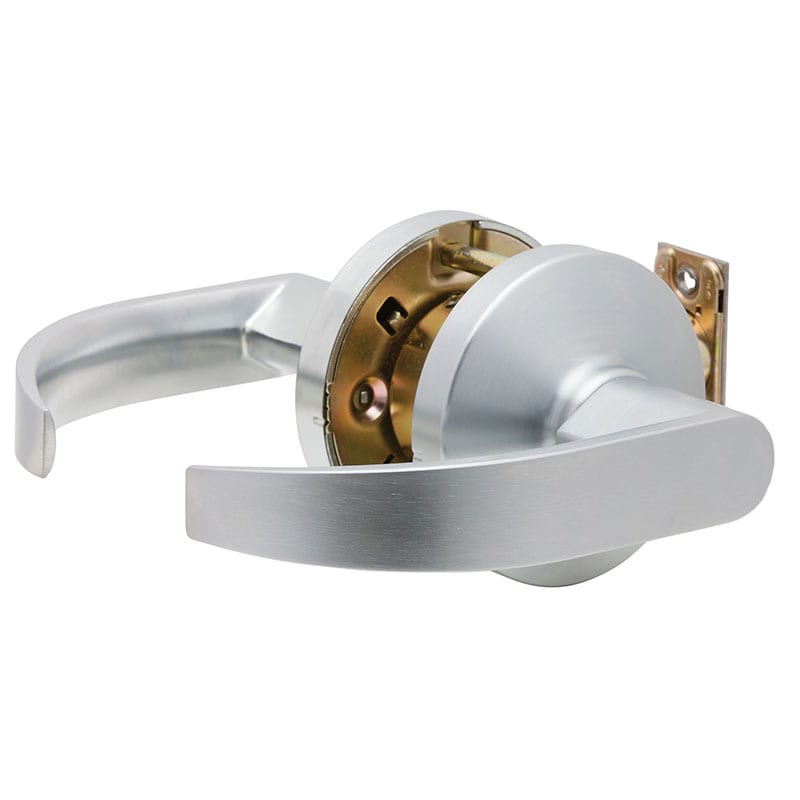

Falcon K101S QUANTUM Heavy Duty Passage Lever
$125.26
Usually Ships: 1-2 Business Days- Discontinued November 2024 – available while supplies last
- Passage – Both Sides Always Unlocked
- ADA Compliant – 3 Hour Fire-Rated
Product Overview
Discontinued November 1, 2024 – Available while supplies last (No returns allowed)
High traffic, high abuse door openings demand a Grade 1 quality lock to keep doors secure. When quality and reliability are needed but cost is a concern, the certified ANSI/BHMA Grade 1 Falcon K Series can do the job. The Falcon K Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.
ANSI Function F75 – Latch bolt by levers at all times.
- 626 Satin Chrome Finish
- Four through bolts for added strength
- Lever security caps to help prevent undesired lever removal and lever sag after continual use
- Manufactured to Allegion’s industry-leading quality standards
| Brand | |
|---|---|
| Lock Function | Passage |
| Usage | Heavy Duty |
| Finishes | 626 Satin Chrome |
| ANSI/BHMA Standard | Meets ANSI/BHMA A156.2, Series 4000, Grade 1 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" to 2-1/4" |
| Backset | 2-3/4" |
| Latch | 1/2" throw – 1-1/8" x 2-1/4" face |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Warranty | 10 Years |
| Screws | Furnished with combination screws for use in wood or metal doors and frames. |
| Lever Design | Q (Quantum) |
