Product Overview
Schlage ND10S SPA Grade-1 Cylindrical Lever Lock, Passage Function, Sparta Lever
The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.
ANSI Function F75 – No key; plain lever on both sides; spring latch. Both levers always unlocked.
- Significantly exceeds ANSI/BHMA Grade 1 requirements
- Shows nearly zero droop or wobble after 16 million cycles
- The strongest cylindrical lock Schlage has ever built
| Brand | |
|---|---|
| Finishes | 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze |
| Lock Function | Passage |
| Usage | Heavy Duty |

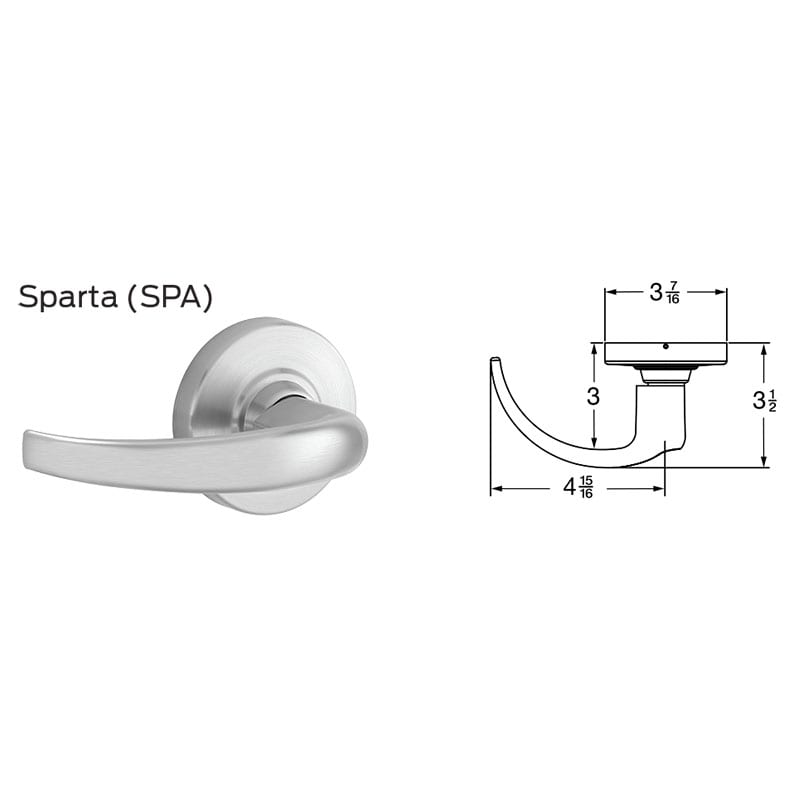

| Lever Design | SPA (Sparta) |
| ANSI/BHMA Standard | Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front |
| Handing | Non-Handed |
| Backset | 2-3/4" |
| Latch | 1/2" throw – 1-1/8" x 2-1/4" face |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Door Thickness | 1-3/4" |
| Warranty | 10 Years |
