Falcon 25-M-EO/F-25-M-EO Heavy Duty Mortise Exit Device, Exit Only

Usually Ships: 1-2 Days
  • Heavy-Duty – ANSI Grade-1
  • For use with metal or wood doors

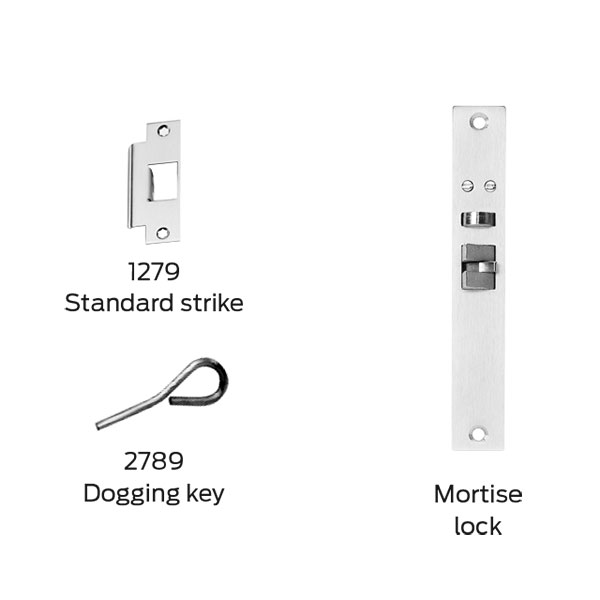

  • Includes mortise body and strike (trim sold separately)

Available Options:

  • Black
  • Dark Bronze
  • Satin Chrome
  • Stainless Steel
Clear

The Falcon 25-M Series device pairs a tough, reliable exit device with a strong mortise lock. The result is maximum safety and security in a single-point, mortise latch type device that also has an attractive touch bar design.

  • Exit Only (trim sold separately)
  • Deadlocking Latchbolt Standard
  • 1279 Strike Standard
  • All mounting screws are concealed
  • Sheet metal screws and machine screws standard
  • 2-3/4″ maximum projection, 2″ dogged
  • F-25-M Model Fire-Rated (no dogging on fire-rated devices)

Mortise Lock: Heavy wrought lock case with investment cast or sintered steel parts. Lock face is forged brass—fits standard cutout. Locks are designed to fit standard ANSI A115.1 preparation for 1-3/4″ thick doors. Deadlocked when auxiliary bolt is depressed 5/16″

Brand

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI A156.3-2001 grade 1 standards

Handing

Handed (LHR – Left Hand Reverse or RHR – Right Hand Reverse)

Fire Rating

25M: Non Fire-rated — F25M: “A” label (3 hr.); 4'0" x 10'0" single doors; 8'0" x 10'0" pair of doors. “B” label (1- 1 ⁄ 2 hr) with F1280 open back strike

Latchbolt

Stainless steel, 3⁄4" throw

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

1279 standard

Door Thickness

1-3/4"

Stile

4-1/2 " minimum

Finishes

313AN Anodized Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US32D (630) Stainless Steel

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
