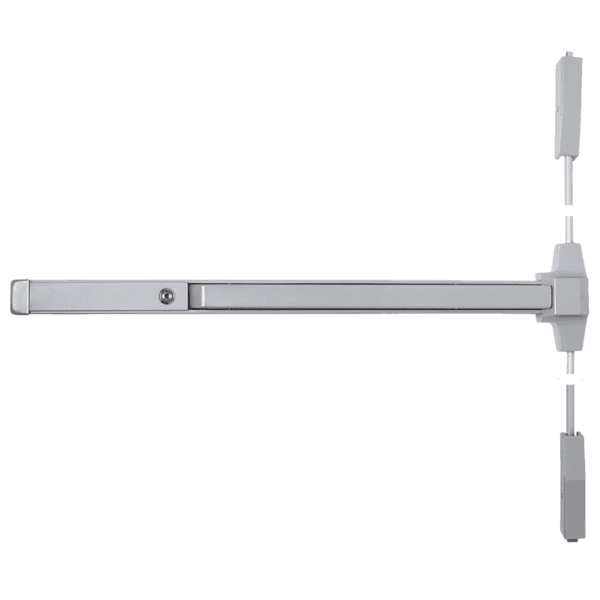

Falcon 20V-EO Surface Vertical Rod Panic Bar Exit Device

Usually Ships: 3-5 Days
  • Light-to-Medium-Duty – ANSI Grade-1 Certified
  • For use w/ Metal or Wood Doors
  • Non-Handed – SP28 Aluminum Finish

Available Options:

Clear

Falcon® prides itself on dependable, cost-effective products that meet or exceed life safety and building requirements. The Falcon 20 Series, pushbar exit devices are ideal for light-to-medium duty door applications, such as commercial, multi-family, office, and retail. This Grade-1, affordable exit device is offered in multiple functions with lever trim options. With the Falcon 20 Series, you’re choosing a quality performing, medium duty pushbar exit device with all metal construction at an unmatched value.

The Falcon 20 Series exit device is an affordable and reliable choice.

  • EO = Exit Only (Trim Sold Separately)
  • Durable, steel mechanism case construction
  • Universal hardware pack for wood and hollow metal
  • 3-1/2″ Minimum stile width
Brand

Length

3' x 7' (2'6" to 3'0" Wide Doors), 4' x 7' (3'1" to 4'0" Wide Doors)

Device Type

Surface Rod Device

ANSI/BHMA Standard

ANSI/BHMA A156.3-2014 Grade-1

Usage

Light Duty

Fire Rating

Non Rated

Handing

Non Handed – Completely Reversible

Stile Type

Wide (Standard)

Door Applications

1-3/4″ Thick Hollow Metal Doors / Wood Doors

Finishes

689 Aluminum

Dogging Feature

Hex key dogging standard on non-fired-rated devices
