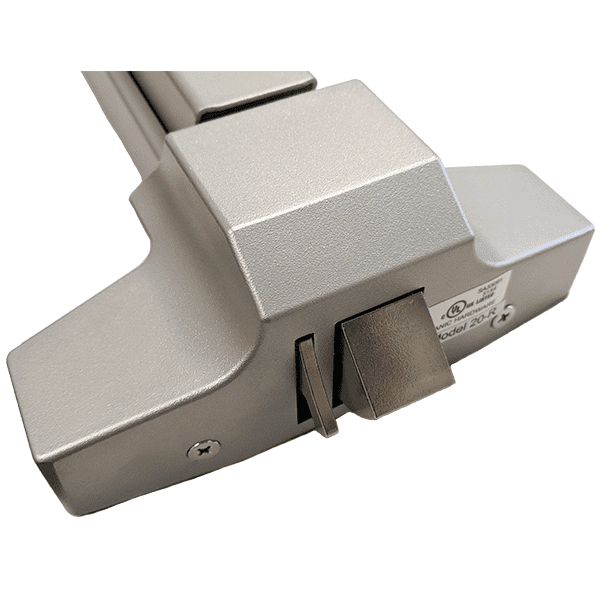

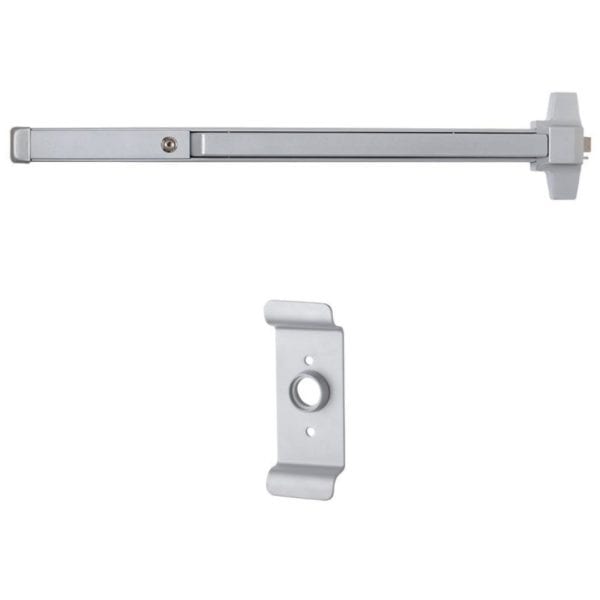

Falcon 20-R-NL Rim Panic Bar Exit Device with 240NL Night Latch Pull

Usually Ships: 3-5 Days
  • Light to Medium-Duty – ANSI Grade-1 Certified
  • For Interior or Exterior Doors – Non-Handed
  • Includes 240NL Nightlatch Pull (Key Retracts Latchbolt)

Available Options:

Clear

Falcon® prides itself on dependable, cost-effective products that meet or exceed life safety and building requirements. The Falcon 20 Series, pushbar exit devices are ideal for light-to-medium duty door applications, such as commercial, multi-family, office, and retail. This Grade-1, affordable exit device is offered in multiple functions, lever, and trim options. With the Falcon 20 Series, you’re choosing a quality performing, medium duty pushbar exit device with all metal construction at an unmatched value.

The Falcon 20 Series exit device is an affordable and reliable choice. A certified ANSI/BHMA A156.3-2014 Grade-1 exit device these pushbars are non-handed and will accommodate 161 door prep. The series also offers multiple functions and a full trim complement, including 161 key in lever.

  • Night Latch Pull (Outside Always Locked – Key Retracts Latchbolt) – Rim Cylinder Sold Separately
  • Durable, steel mechanism case construction
  • Standard features include scratch-resistant surfaces and built-in deadlocking
  • Roller Strike Standard
  • 3-1/2″ Minimum stile width
Brand

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Usage

Light Duty

ANSI Grade

Certified ANSI/BHMA A156.3-2014 Grade 1

Trim

240-NL (Night Latch Pull)

Cylinder

1-1/8" Rim Cylinder (Sold Separately)

Door Applications

1-3/4″ Thick Hollow Metal Doors / Wood Doors

Fasteners

Universal hardware pack for wood and hollow metal

Strikes

Roller Strike

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Hand

Non-handed

Fire Rating

Non Rated

Stile Type

Wide (Standard)

Finishes

689 Aluminum

Dogging Feature

Half turn hex dogging standard
