Adams Rite 8600 Narrow Stile Concealed Vertical Rod Exit Device

Usually Ships: 2-3 Days
  • For Aluminum Doors (Minimum 2″ Stile)

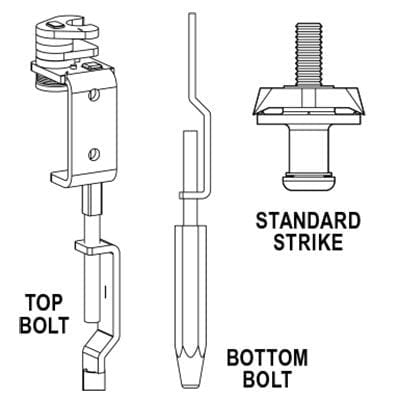

  • Patented top latching mechanism interlocks door to frame
  • Clean Sight Lines – Easy to Intstall

Available Options:

Clear

Product Overview

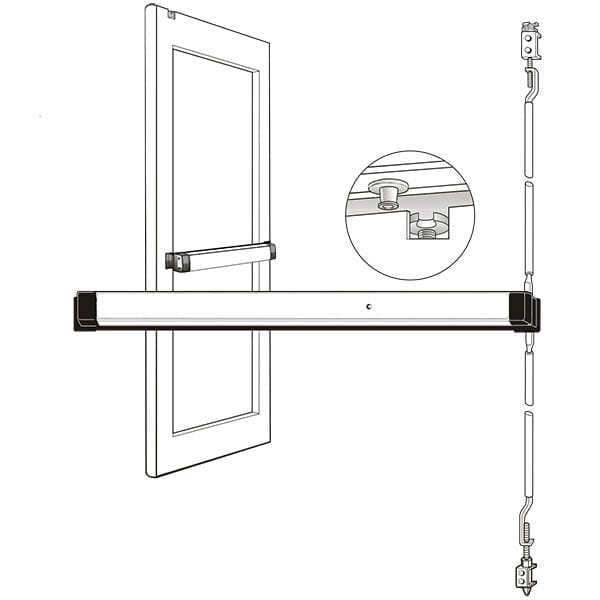

This Adams Rite 8600 concealed vertical rod exit device is for aluminum stile glass storefront doors that require a life-safety exit device with concealed vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors. Patented top latching mechanism interlocks door to frame. The 8600 offers an unobtrusive design for clean sightlines. Available in Aluminum (8611) and Dark Bronze (8622).

  • Exit Only – No Entry from Outside
  • Strong, durable construction for a high level of security
  • Easy to install
  • Unobtrusive design for clean sightlines
Brand

Model / Finish

8611 – 36" – Aluminum, 8622 – 36" – Dark Bronze

Device Type

Concealed Rod Device

ANSI Grade

ANSI/BHMA A156.31, Grade 1

Usage

Medium Duty

Handing

Non-Handed

Stile Type

Narrow

Stile

Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors

Door Height

Adjustable for doors up to 66" above the select bar height

Dogging Feature

Half turn hex dogging standard

Projections

2-5/8" when fully projected, 1-5/8" when dogged

Fasteners

Standard self-tapping screws

Door Applications

1-3/4" Aluminum Doors
