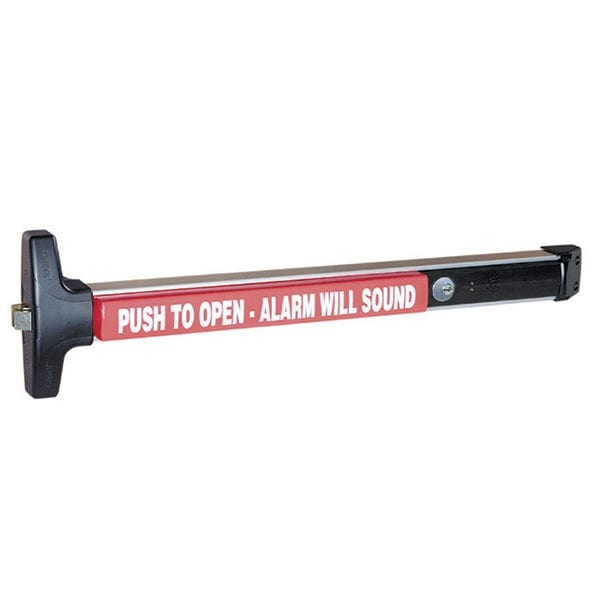

Detex FV40 EB Fire-Rated Alarmed Rim Exit Device

Usually Ships: 1-2 Business Days
  • 100db alarm, powered by standard 9-volt battery
  • UL listed, 3 hour fire-rated
  • Mortise cylinder (sold separately) provides arming

Available Options:


Detex FV40 EB Value Series Wide Stile Rim Exit Device, Battery Operated Alarm, 36 In. Device, Fire-Rated

The FV40xEB is designed for primary and secondary exits that require an alarmed panic device.  The 100 decibel alarm will sound when someone attempts to exit, alerting management to the unauthorized exit.  Available in various configurations, the FV40xEB provides security while meeting all life safety concerns, offering an exceptional value.

  • 36″ Length
  • Stainless steel, 3/4″ deadlocking Pullman-type latch bolt
  • 628 Anodized Aluminum or 711 Black Base Rail
  • Red flashing LED alert when not armed
  • Inside key control allows alarm bypass
  • Meets NFPA 80 & 101 for Life Safety
  • Mortise Cylinder Required (sold separately)


628 Anodized Aluminum, 711 Black Anodized Aluminum



ANSI/BHMA Standard

ANSI/BHMA certified A156.3

Fire Rating

UL Listed Fire Exit Hardware for 3 hours, maximum 4’x10’ single doors and pairs of 4’x8’ with F90KR keyed removable mullion



Door Thickness

1-3/4" to 2-1/4"


3/4" throw


1-1/4" Mortise Cylinder (sold separately)

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA


10 Year Mechanical / 3 year Electrical Limited Manufacturer's Warranty

VB40-EB Installation Instructions
