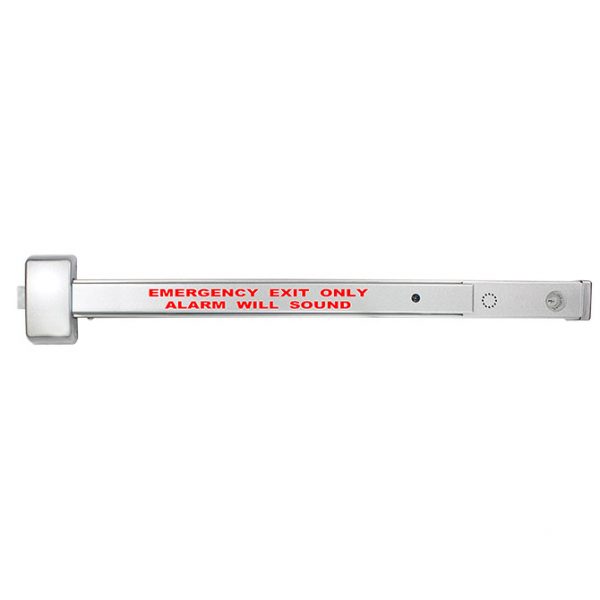

Cal-Royal NALRMA2200 Alarmed Rim Exit Device

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Powered by one 9-volt battery (included), 120-decibel alarm
  • Armed and disarmed by key (mortise cylinder included)

Available Options:


Cal-Royal NALRMA2200 Alarmed Rim Exit Device, Exit Only

Includes a built-in battery-powered alarm –  great for applications such as retail, hospitality, and more.

  • 1, 3, 5-minute and continuous alarm type settings available 3-1/2″
  • ON and OFF power switch
  • Alarm sound frequency is 120 db
  • Alarm unit has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and breached
  • The key switch to turn alarm off is a standard 1-1/4″” cylinder with “C” keyway.
  • The alarm operates on one standard 9-volt transistor battery. When battery is weak the horn will emit an intermittent signal.
  • Alarmed units are supplied with a micro switch, which monitors the push rail and the latch bolt for foolproof security on rim devices
  • Alarm unit has a signal OC output that can be linked to external alarm control systems
  • Easy removal of the alarm unit without the need to dismount the exit device for battery maintenance
  • Unit includes “EMERGENCY EXIT ONLY ALARM WILL SOUND” decal for application on door or unit
  • ANSI/BHMA Grade 1 and UL/cULlisted for panic hardware
  • Exit Only – (Outside Trim Sold Separately)


ALUM Aluminum


36" (For 30” to 36” doors), 48" (For 37” to 48” doors)


Standard 6-pin mortise cylinder included


Schlage C Keyway


Medium Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Fire Rating


Dogging Feature



Stainless steel 3/4” throw with anti-pick feature


239 packed standard

Door Thickness


Stile Type

Wide (Standard)


Non Handed – Completely Reversible


Limited Lifetime Warranty
