Product Overview

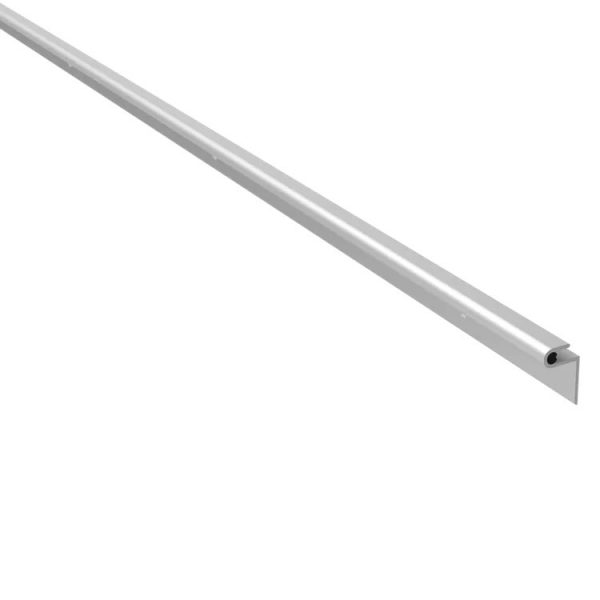

Pemko 68 Series Door Top Interlocking Weatherstripping
The 68 Door Top Weatherstrip, used with the 347 Series, is a fire-rated interlocking weatherstrip designed for outswing doors. The weatherstrip should be ordered at least 4″ longer than the door width. With UL10C positive pressure and Underwriters Laboratory 4L10 ratings, this weatherstrip provides reliable protection.

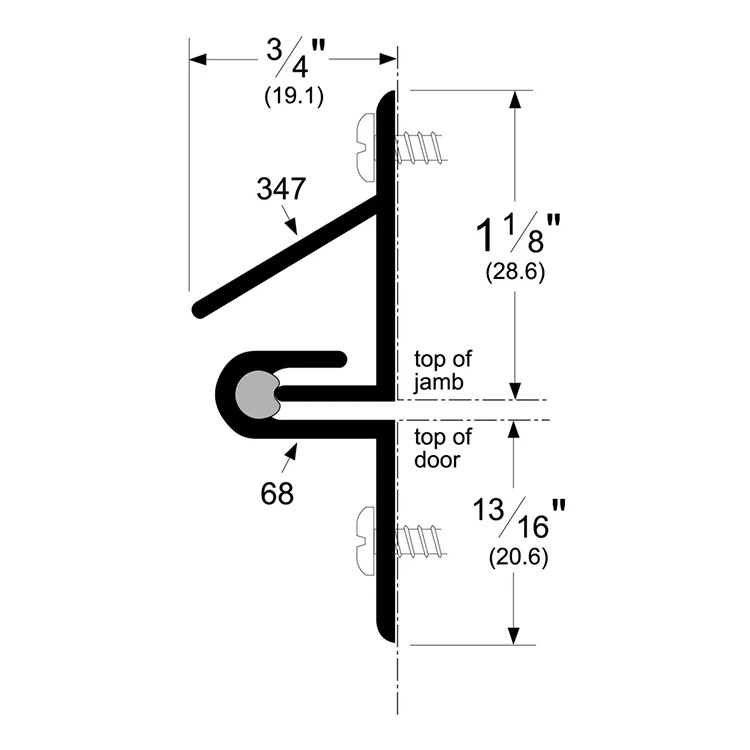

- Designed to be installed on the door top (Interlocks with Part #347 which installs on the frame – sold separately)
- Door top weatherstrip that hooks to the 347 to create the seal
- Overhead interlocking rain drip
- Should be ordered a minimum of 4″ longer than the door width
- For outswing doors only
- 347A: A – Mill Finish Aluminum
- 347D: D – Dark Bronze Anodized Aluminum
Ratings
- UL 4L10 listed
- UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
Brand | |
---|---|
Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum |
Length | 40", 52", 76" |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
