Design Hardware ELR-1000R Rim Exit Device with Electric Latch Retraction

Usually Ships: 3-5 Business Days

Heavy Duty, ANSI A156.3 Grade 1 Standards
Energy-efficient motorized latch retraction
24VDC filtered and regulated

Available Options:

Finish
Fire-Rated
Length	Clear

Quantity:

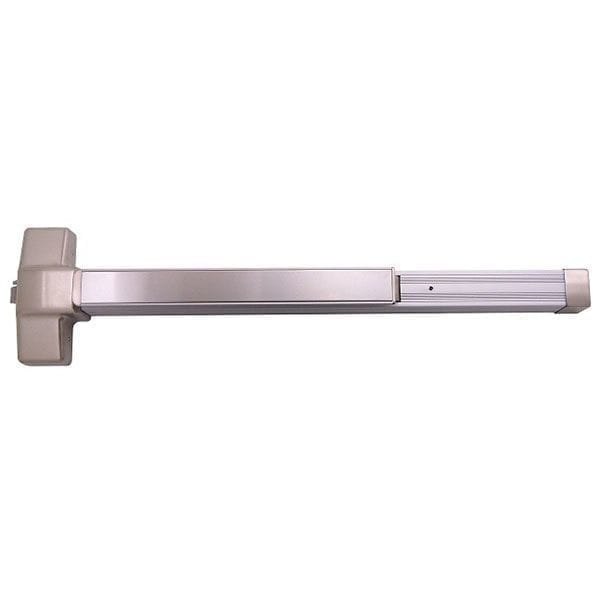

Design Hardware ELR-1000R Grade-1 Rim Exit Device with Electric Latch Retraction, Exit Only

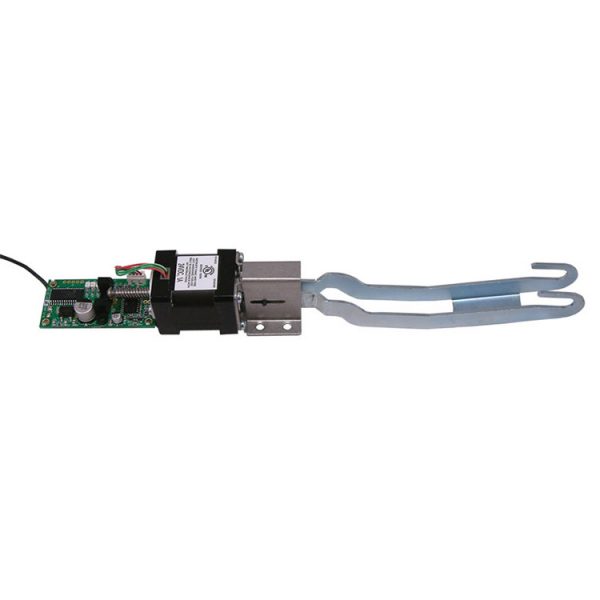

ELR – Electric latch retraction/hold back exit devices allow for remote keyless access in high occupancy/high traffic conditions such as hospitals, airports, schools and churches. The device may be continously energized allowing for a push/pull condition if desired.

The 1000 Series meets ANSI A156.3-Grade 1 Standards and comply with the ADA American Disabilities Act – providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand.

Exit Only (Outside Trim Sold Separately)
Designed for high traffic conditions such as hospitals, airports, schools, and churches
Requires low power
Offers quiet operation
Operating Voltage: 24VDC Filtered and Regulated
Amperage: 1 AMP MAX inrush, 400mA MAX Holding
On-Board diagnostic LED indicators
Automatic retry
Low power requirements
Non polarized leads
Simultaneous latch retraction and dogging (push pad drepressed)
Momentary or maintained operation
Center Case Dim: 8″ Height x 2-7/8″ Wide x 2-13/16″ Thick – 4-1/2″ Minimum stile required
Mechanism Case Dim: 2-3/16″ Height x 2-3/16″ Wide
UL Listed for both Panic and Fire Exit Hardware

Brand	Design Hardware
Finishes	US32D (630) Satin Stainless Steel
Length	33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")
Trim	None – Exit Only (Outside Trim Sold Separately)
Voltage	24VDC Filtered and Regulated
Construction	Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis
ANSI Grade	Meets & Exceeds ANSI A156.3 – Grade 1 Standards
Usage	Heavy Duty
Fire Rating	1000R Non-Rated – F1000R 3 Hour UL Listed
ADA Compliance	Meets ADA requirements ANSI A117.1 with Lever Trim
Handing	Non Handed – Completely Reversible
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Latchbolt	Deadlocking latchbolt with 5/8″ projection
Strike	Roller Strike with 5/8″ projection & 1/8″ shim
Stile Type	Wide (Standard)
Projections	3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Fasteners	Wood, Machine & Self Tapping Machine Screws
Warranty	1 Year
