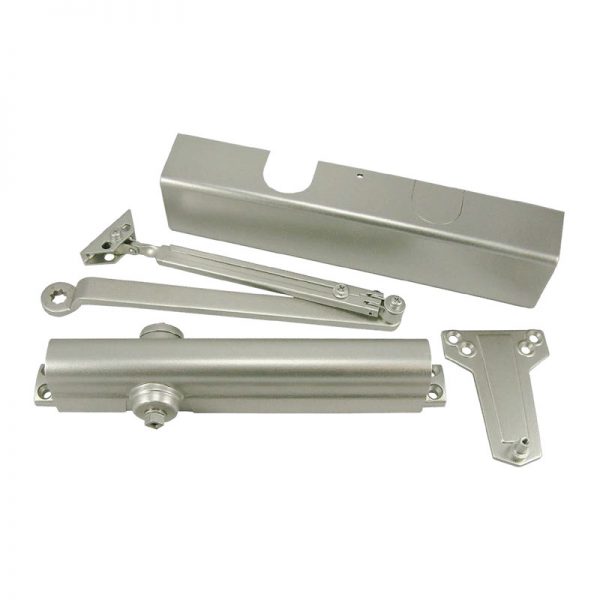

Design Hardware 316 Door Closer

Usually Ships: 2-3 Days
  • Medium Duty – Grade-1
  • Fully Adjustable (Sizes 1-6)
  • Non-Handed – Regular, Top Jamb or Parallel Arm Mount

Available Options:

  • Aluminum
  • Brass
  • Dark Bronze

The Design Hardware 316 Series is an affordable door closer for institutional, industrial, commercial and other medium to high traffic applications.

  • Heavy Duty Cast Aluminum Closer Body, Rack & Pinion Construction
  • Adjustable Spring Power from Size 1 to 6 – Preset at size 3
  • Independent Latch & Sweep Speed Controls
  • Back Check Intensity Control Standard
  • Staked Valves to prevent backing valves out too far
  • Minimum Top Rail : 3-1/2″ – Top Jamb: 2-1/4″ – Parallel Arm: 5-1/4″
  • Thru bolts with machine screws, Wood screws & Self tapping machine screws included
  • Includes all screws and brackets for Regular, Top Jamb and Parallel Arm Installations

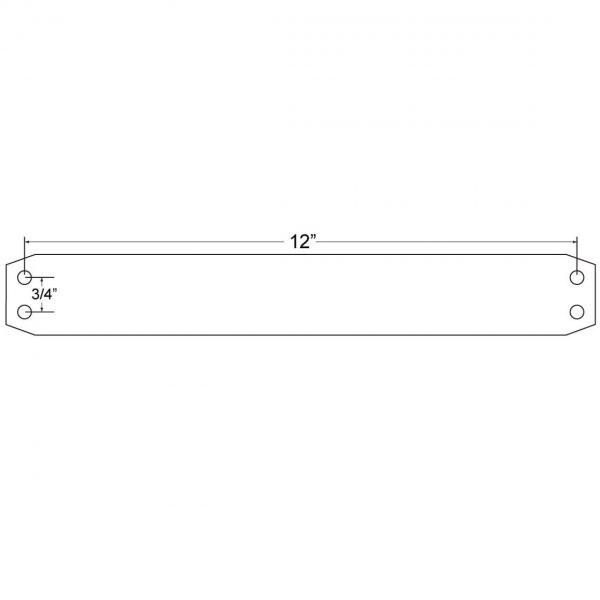

Templating (Hole Pattern)

3/4" x 12"


Medium Duty

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Fire Rating

“A” Label 3 Hour Fire Doors



Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)


Full Cover

Door Applications

Hollow Metal, Wood or Aluminum


689 Aluminum, 695 Dark Bronze, 696 Brass

316 Door Closer Instructions
