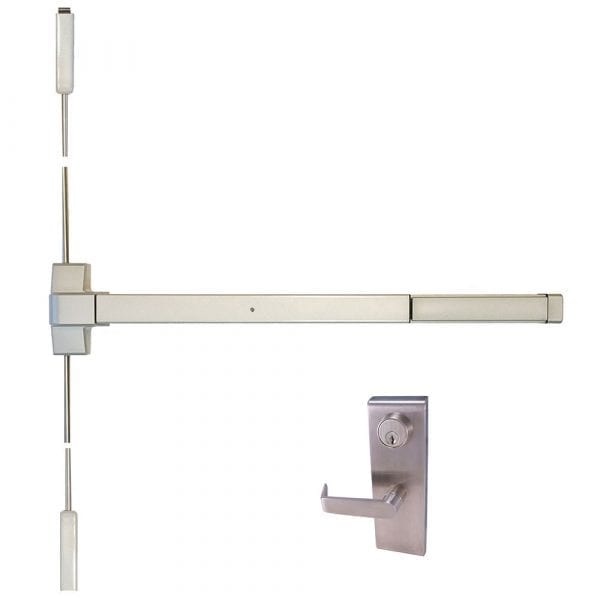

Design Hardware 2000V-LE Surface Vertical Rod Exit Device with Heavy-Duty Escutcheon Entry Lever

Usually Ships: 2-3 Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use w/ Metal or Wood Doors
  • 2000V with LE-08 Heavy-Duty Entry Lever (Cylinder Included)

Available Options:

  • Aluminum
  • Dark Bronze
Clear

The 2000V is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

  • Includes LE-08 Entry Lever
  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide
  • Top Latch: U Shaped Top Latch for Secure Engagement with strike
  • Bottom Latch: Drop Bolt Style Bottom Latch Secures into flat strike & hole in the floor

LE-08 Escutcheon Lever Trim

  • Includes Mortise Cylinder
  • Entry Function – Convertible to Night Latch
  • Steel, Zinc Dichromated Chassis – Stainless Steel Exterior Housing
  • Thru bolts to head of exit device
  • 5″ Solid Stainless Steel lever – 2-7/8″ total projection
  • Escutcheon: 3″ Wide x 9″ Height x 3/4″ Projection – Will cover 161 door prep
  • Door Thickness: 1-3/4″ standard
Brand

Finish

Aluminum, Dark Bronze

Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

Door Height

7'0" Standard – Extended top rods available for up to 10'0" tall doors

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

Trim

LE-08 – Lever Entry Function (Convertible to Night Latch)

Cylinder

1 1/8″ Mortise cylinder with std. cam (included) – 6 Pin Brass, C Kwy, with 2 Keys

Keyway

Schlage C Keyway

Handing

Completely Reversible

Fire Rating

2000V Non-Rated – F2000V 3 Hour UL Listed

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)

Device Type

Surface Rod Device

2000V Installation Instructions F2000V Installation Instructions LE Trim Installation Instructions
