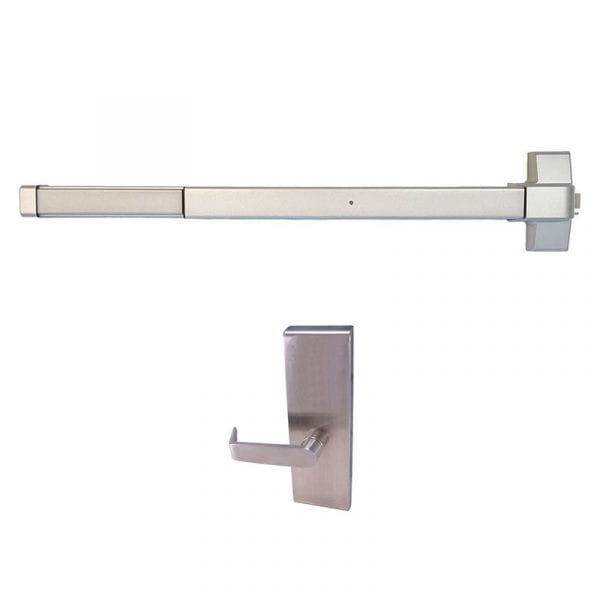

Design Hardware 2000R-LE-A Rim Exit Device with Heavy-Duty Escutcheon Passage Lever

Usually Ships: 3-5 Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use w/ 1-3/4″ Metal or Wood Doors
  • 2000R with LE-08A Heavy-Duty Passage Lever

Available Options:


The 2000R is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

The LE trim is the heaviest duty trim Design Hardware offers. It is equipped with a unique tailpiece (actuator shaft) that is a direct drive design putting all torque straight into the device. This LE trim also features a field-friendly handing solution.

  • Includes LE-08A Passage Lever
  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide

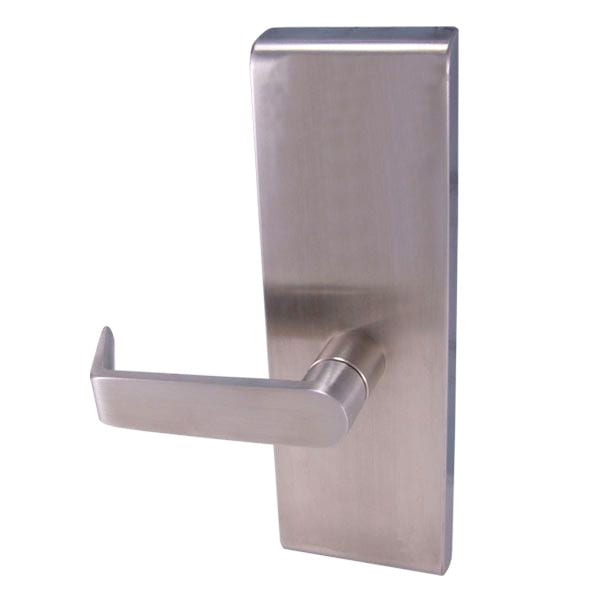

LE-08A Escutcheon Passage Lever Trim

  • Passage Function – Levers Always Free and Open
  • Steel, Zinc Dichromated Chassis – Stainless Steel Exterior Housing
  • Thru bolts to head of exit device
  • 5″ Solid Stainless Steel lever – 2-7/8″ total projection
  • Escutcheon: 3″ Wide x 9″ Height x 3/4″ Projection – Will cover 161 door prep
  • Door Thickness: 1-3/4″ standard


2000R w/ Dogging Feature, F2000R – 3 Hour Fire-Rated Device (No Dogging)


33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")


LE-08A (Escutcheon Passage Lever)


Completely Reversible

ANSI Grade

Meets & Exceeds ANSI A156.3 – Grade 1 Standards


Medium Duty

Fire Rating

2000R Non-Rated – F2000R 3 Hour UL Listed

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Dogging Feature

Hex key dogging standard on non-fired-rated devices


Deadlatching, 5/8" throw


Roller Strike with 5/8″ projection & 1/8″ shim


Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)


2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)

Door Applications

1-3/4" Metal and Wood Doors

2000R Installation Instructions F2000R Installation Instructions LE Trim Installation Instructions
