Pemko-CFMSLFHD1-Hinge
FM_SLF
Pemko-CFMSLFHD1-Hinge
FM_SLF

Pemko FM_SLF-HD1 Full Mortise Short Leaf Flush Continuous Gear Hinge, Heavy-Duty

Usually Ships: 10-20 Business Days
  • ANSI/BHMA A156.26 and UL certified
  • Designed mainly for new door applications
  • Full mortise, concealed hinge

Available Options:
Clear

Product Overview

Pemko _FM_SLF-HD1 Heavy Duty Aluminum Short Leaf Flush Continuous Geared Hinge

  • Designed mainly for new door applications
  • For use with doors that range between 1-3/4″ to 2-1/4″
  • Designed for double door applications to keep the faces of the doors flush
  • Fasteners are #12-24 x 11/16” Flat Head Undercut, Type C, thread-forming fasteners, no tapping required
  • ANSI/BHMA A156.26 and UL certified

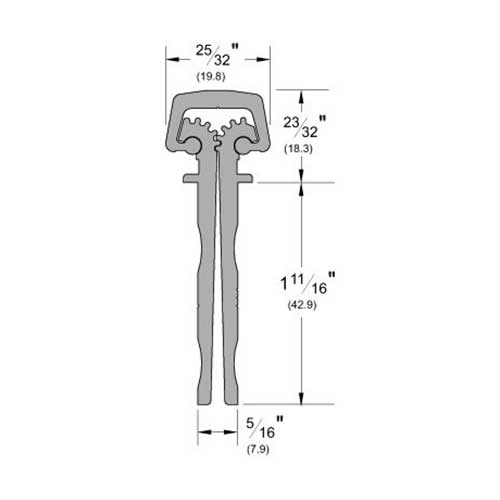

  • Width: 5/16” (between frame edge and door edge)
  • Cap Width: 25/32”
  • Height: 1-11/16” (to flange/frame & door edge sides)
  • Height: 11/16” (flange to top of cap)
  • Lengths: 83″, 85″ *95″, and *120″

*excessive length surcharge applies

Finishes

  • C – Clear Anodized Aluminum
  • D – Dark Bronze Anodized Aluminum
  • G – Gold Powder Coat
  • SN – Satin Nickel Powder Coat
  • BSP – Black Suede Powder Coat
  • WSP – White Suede Powder Coat

Models: CFM83SLF-HD1, CFM85SLF-HD1, CFM95SLF-HD1, CFM108SLF-HD1, CFM120SLF-HD1, DFM83SLF-HD1, DFM95SLF-HD1, GFM83SLF-HD1, GFM85SLF-HD1, GFM95SLF-HD1, GFM120SLF-HD1, SNFM83SLF-HD1, SNFM85SLF-HD1, SNFM95SLF-HD1, SNFM120SLF-HD1, BSPFM83SLF-HD1, BSPFM85SLF-HD1, BSPFM95SLF-HD1, BSPFM120SLF-HD1, WSPFM83SLF-HD1, WSPFM85SLF-HD1, WSPFM95SLF-HD1, WSPFM120SLF-HD1

codes-pemko-hinge

Brand

Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum, G – Gold Powder Coat, SN – Satin Nickel Powder Coat, BSP Black Suede Powder Coat, WSP White Suede Powder Coat
Continuous Hinge Type

Full Mortise (Concealed)
Length

83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door), 108" (for 9'0" door), 120" (for 10'0" door)
Material

Aluminum
Usage

Heavy Duty
Door Applications

1-3/4″ Thick Doors
Warranty

10 Years
