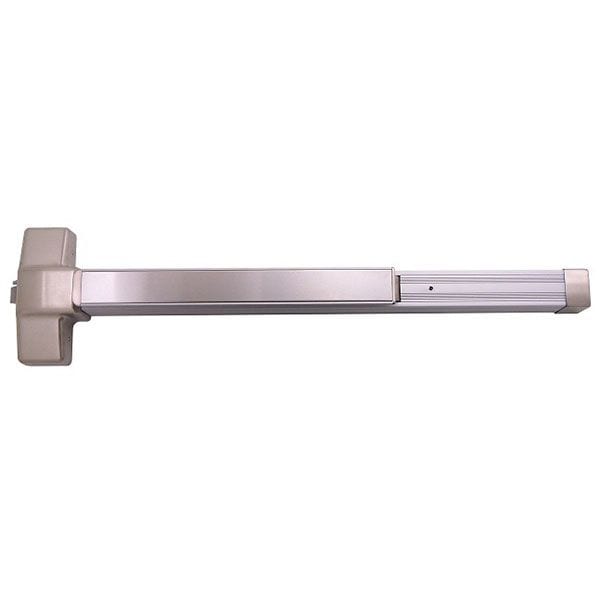

Design Hardware 1000R Panic Rim Exit Device

Usually Ships: 3-5 Business Days
  • Heavy Duty, ANSI A156.3 Grade 1 Standards
  • For use with metal and wood doors
  • Meets ADA requirements, UL Panic Listed

Available Options:

Product Overview

Design Hardware 1000R Grade-1 Rim Exit Device, Panic Listed, Exit Only

The 1000 Series meets ANSI A156.3-Grade 1 Standards and comply with the ADA American Disabilities Act – providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Outside Trim Sold Separately)
  • UL Listing: UL Listed for Panic Exit Hardware
  • Center Case Dim: 8″ Height x 2-7/8″ Wide x 2-13/16″ Thick – 4-1/2″ Minimum stile required
  • Mechanism Case Dim: 2-3/16″ Height x 2-3/16″ Wide
Brand

Finishes

US3 (605) Bright Brass, US4 (606) Satin Brass, US10B (613) Oil Rubbed Bronze, US26 (625) Bright Chrome, US32D (630) Satin Stainless Steel
Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")
Trim

None – Exit Only (Outside Trim Sold Separately)
Construction

Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis
ANSI Grade

Meets & Exceeds ANSI A156.3 – Grade 1 Standards
Usage

Heavy Duty
Fire Rating

None
ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim
Handing

Non Handed – Completely Reversible
Dogging Feature

Half turn hex dogging standard
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Stile Type

Wide (Standard)
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Fasteners

Wood, Machine & Self Tapping Machine Screws
1000R Installation Instructions 1000R Template
