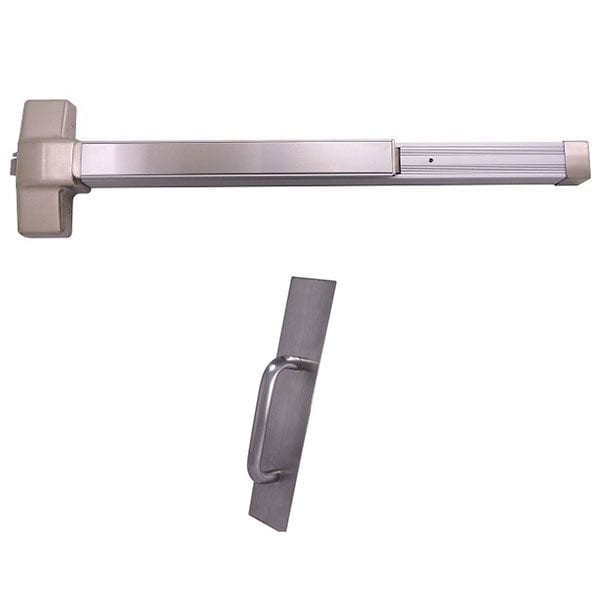

Design Hardware 1000R-DT Rim Exit Device with Dummy Pull

Usually Ships: 2-3 Days
  • Heavy Duty – ANSI A156.3 – Grade 1 Standards
  • For use w/ 1-3/4″ Metal and Wood Doors
  • 1000R with 2P-02DT Dummy Pull Trim (Pull when Dogged)

Available Options:


The 1000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act – providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand. The 2P trim provides a clean, traditional look. This trim is an economical choice, and an ideal choice for high use doors that will be dogged down for push/pull applications.

  • US32D – Stainless Steel Finish
  • UL Listing: UL Listed for Panic Exit Hardware
  • Center Case Dim: 8″ Height x 2-7/8″ Wide x 2-13/16″ Thick – 4-1/2″ Minimum stile required
  • Mechanism Case Dim: 2-3/16″ Height x 2-3/16″ Wide

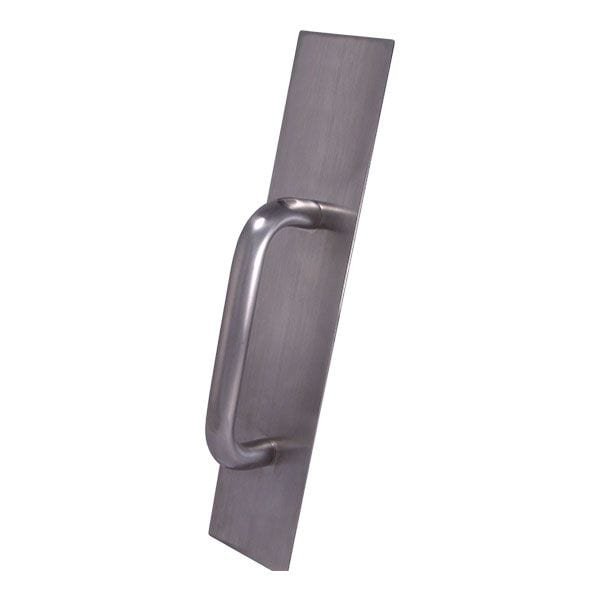

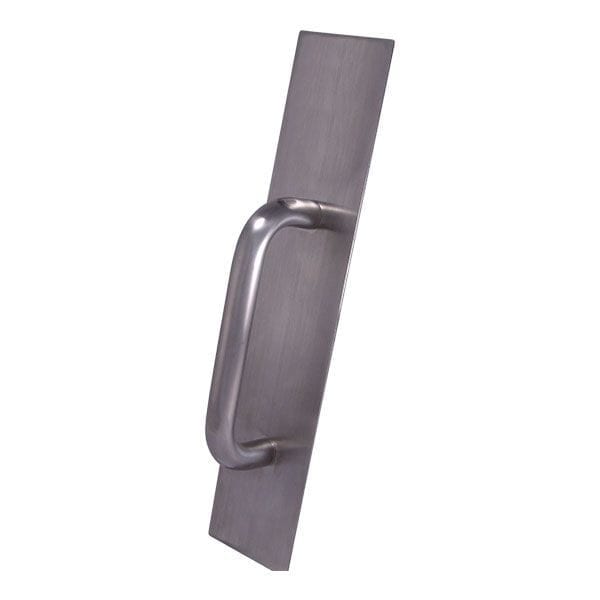

2P-02DT Pull

  • Dummy Pull – Pull when Dogged
  • Thru bolts to head of exit device
  • Stainless Steel Construction
  • Pull Plate: 3″ Wide x 13-7/8″ Height x 1/16″ thick
  • Pull: 3/4″ diameter hollow x 6-1/4″ ctc x 27/16″ projection


1000R – w/ Dogging Feature


33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")


Stainless Steel


Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis


2P-02DT (Dummy Pull)

ANSI Grade

Meets & Exceeds ANSI A156.3 – Grade 1 Standards


Heavy Duty

Fire Rating


ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim


Completely Reversible

Dogging Feature

Half turn hex dogging standard


Deadlocking latchbolt with 5/8″ projection


Roller Strike with 5/8″ projection & 1/8″ shim


Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)


3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)

1000R Installation Instructions 1000R Template F1000R Installation Instructions F1000R Template 1000 Pull Trim Instructions (Standard) 1000 Pull Trim Instructions (161 Prep Door)
