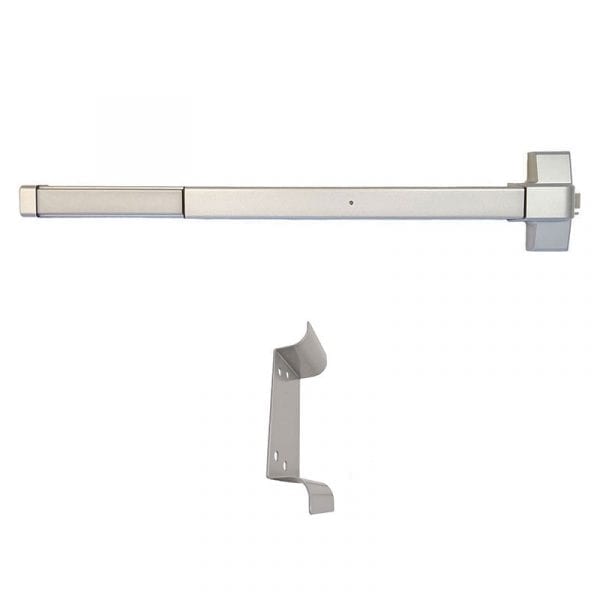

Design Hardware 2000R-DT Rim Exit Device with Dummy Pull

Usually Ships: 2-3 Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use w/ Metal or Wood Doors
  • 2000R with DFP-02DT Dummy Pull (Pull when Dogged)

Available Options:

  • Aluminum
  • Dark Bronze
Clear

The 2000R is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

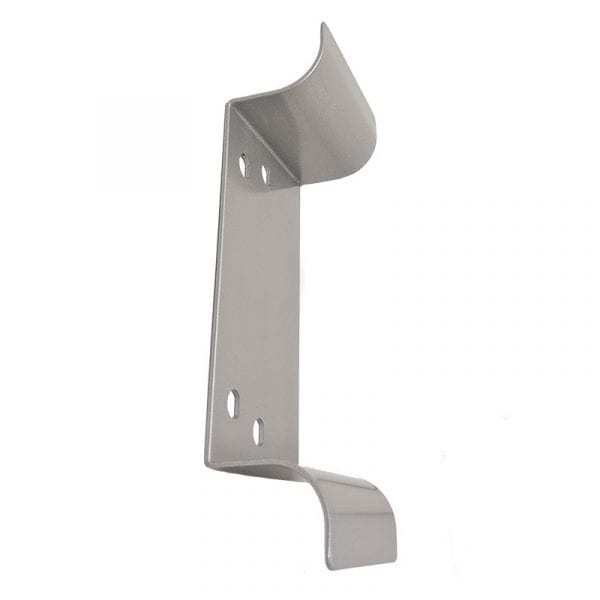

DFP-02DT: Economical pull trim option for 2000R. Will cover 161 prep on door. Thru-bolted design thru bolts to head of exit device.

  • Includes DFP-02DT Dummy Pull (Pull when Dogged)
  • UL Listing: UL Listed for Panic Exit Hardware
  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide
Brand

Model

2000R w/ Dogging Feature

Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

Trim

DFP-02DT (Dummy Pull)

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

Fire Rating

Non-Fire-Rated

Handing

Non Handed – Completely Reversible

Dogging Feature

Half turn hex dogging standard

Latchbolt

Deadlatching, 5/8" throw

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)

2000R Installation Instructions 2000 DFP Pull Installation - Standard 2000 DFP Pull Installation - 161 Prep
