Product Overview

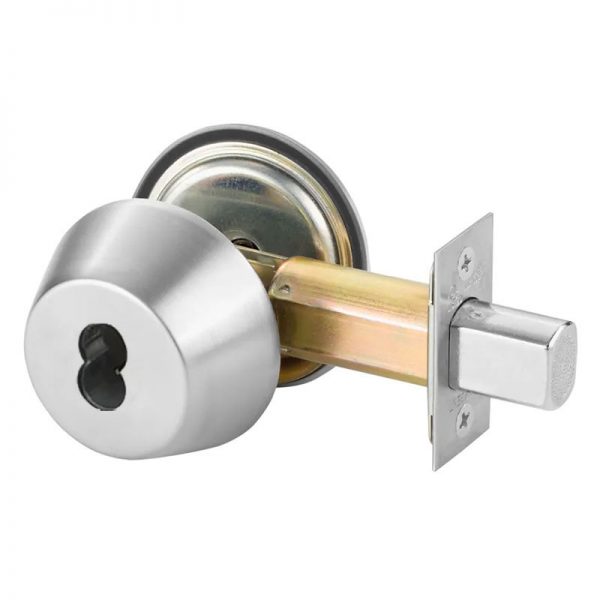

Corbin Russwin DL3213 CL6 Single Cylinder Deadbolt, Grade-1, 2-3/4″ Backset, LFIC Prep, Less Core
Ideal for heavy-duty industrial and security applications, the DL3200 Series is a high-grade cylindrical deadbolt that is ANSI/BHMA Grade 1 certified.
ANSI E0151 Single Cylinder Deadlock
- By key outside and by thumbturn inside
| Brand | |
|---|---|
| Finishes | BSP Black Suede Powder Coat, US10B (613) Oil Rubbed Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome |
| ANSI/BHMA Standard | A156.36 Certified Grade 1 |
| Usage | Heavy Duty |
| ANSI Function | E0151 |
| Deadbolt Type | Single Cylinder |
| Cylinder | Prepped for (FSIC) Full Size Interchangeable Core (less core) |
| Bolt | 1" throw bolt, 1-1/8" x 2-1/4" square corner face plate |
| Backset | 2-3/4" |
| Strike | 1-1/8” x 2-3/4“ square corner |
| Fire Rating | Fire Rated – UL10C – Positive Pressure |
