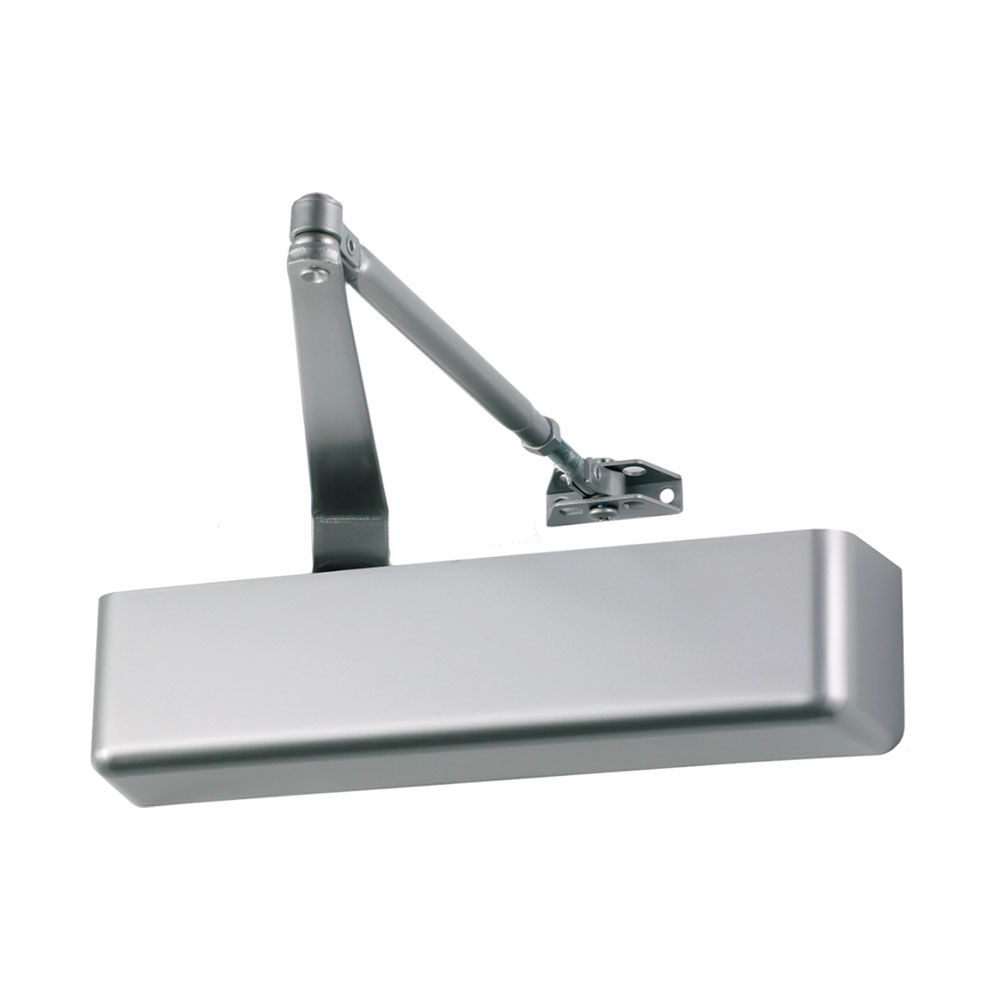

Calibre CA5501 Door Closer

Usually Ships: 1-2 Business Days
  • Complies to BHMA/ANSI A156.4 Grade 1
  • Fully Adjustable (Sizes 1-5)
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Calibre CA5501 Grade-1 Door Closer, Size 1-5 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, Full Cover

The 5500 Series is designed to provide full door closing control suitable for all aluminum and glass storefront, hollow metal, and wood doors for commercial door use applications. Retrofits directly for the Norton 8000 Series, Accentra/Yale 3000 Series, and the Dor-O-Matic/Falcon SC80 Series door closers. The 5000 Series is available in ADA adjustable spring sizes: 1~5 and 1~4 for use on offset pivoted, butt hung, or continuous geared hinged doors. A high-impact molded Full PVC Dress Cover is included.

  • Non-handed
  • Fully adjustable size 1-5
  • Includes hardware and brackets to allow for regular, top jam, and parallel arm installation

Code Compliance

  • Complies to BHMA/ANSI A156.4 Grade 1, Types C02011, C02021, C02041, C03011, C03021, and C03041
  • Barrier Free Operations to comply with Federal Accessibility Standards (ADA) and ANSI A117.1 (4,13,11)
  • Underwriters’ Laboratories Inc. Listed UL10C for positive pressure and UBC 7.2 (1997) BS476 for Fire Safety

codes

Brand

Finishes

689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)

Templating (Hole Pattern)

3/4" x 12"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Usage

Medium Duty

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-5

Fire Rating

Underwriters’ Laboratories Inc. Listed UL10C for positive pressure and UBC 7.2 (1997) BS476 for Fire Safety

Handing

Non-Handed

Cover

Full Cover

Door Applications

Hollow Metal, Wood or Aluminum
