Product Overview

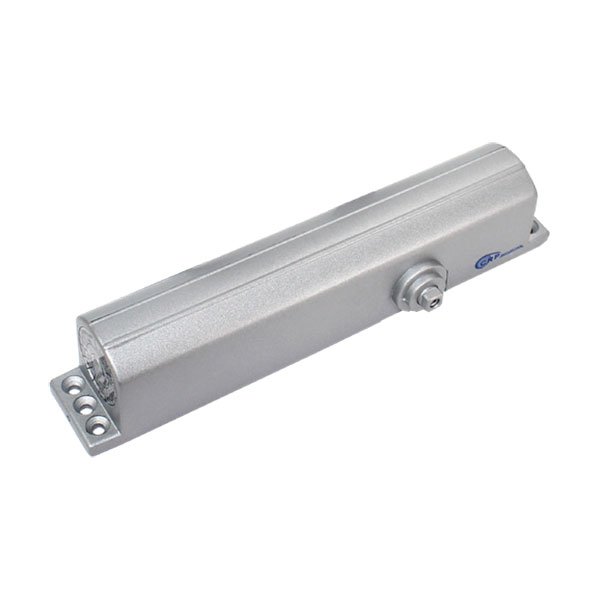

Cal-Royal N900PBFDA Multi-Size Full Feature Door Closer, Delayed Action, Grade-1, UL Listed, Barrier Free, Adjustable size 1-6, Full Cover
Cal-Royal’s finest hydraulic door closer series meeting the highest industry standards. The medium-duty 900 Series full feature multi-size commercial door closer is built for use in office buildings, shopping centers, and other commercial buildings.
- Delays closing from 120° to 70°
- Delay time adjustable up to approximately 1 minute
- Full plastic cover standard
- Full feature closer
- For door weights up to 260 lbs.
- For interior and exterior use
- ANSI 156.4 Grade 1
- UL Listed, Conforms to standards UL10C and UBC7-2-1997
Brand | |
---|---|

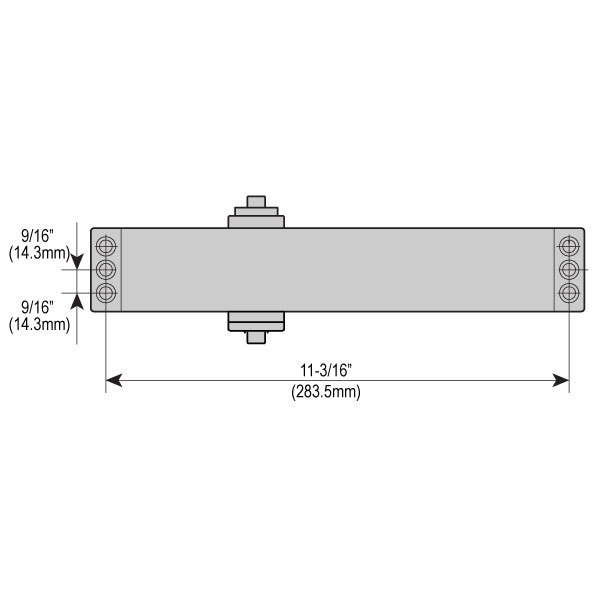

Templating (Hole Pattern) | 9/16" x 11-1/8" |
Finishes | 689 Aluminum, 693 Black, 695 Dark Bronze, 696 Brass |
ANSI/BHMA Standard | ANSI 156.4 Grade 1 |
Usage | Medium Duty |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Fire Rating | UL Listed |
Body Construction | Cast Aluminum Body |
Spring Size | Adjustable Spring Size 1-6 |
Cover | Full Cover |
Handing | Non-Handed |
Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
Door Application | Hollow Metal, Wood or Aluminum |
Warranty | Limited Lifetime Warranty |
