Product Overview

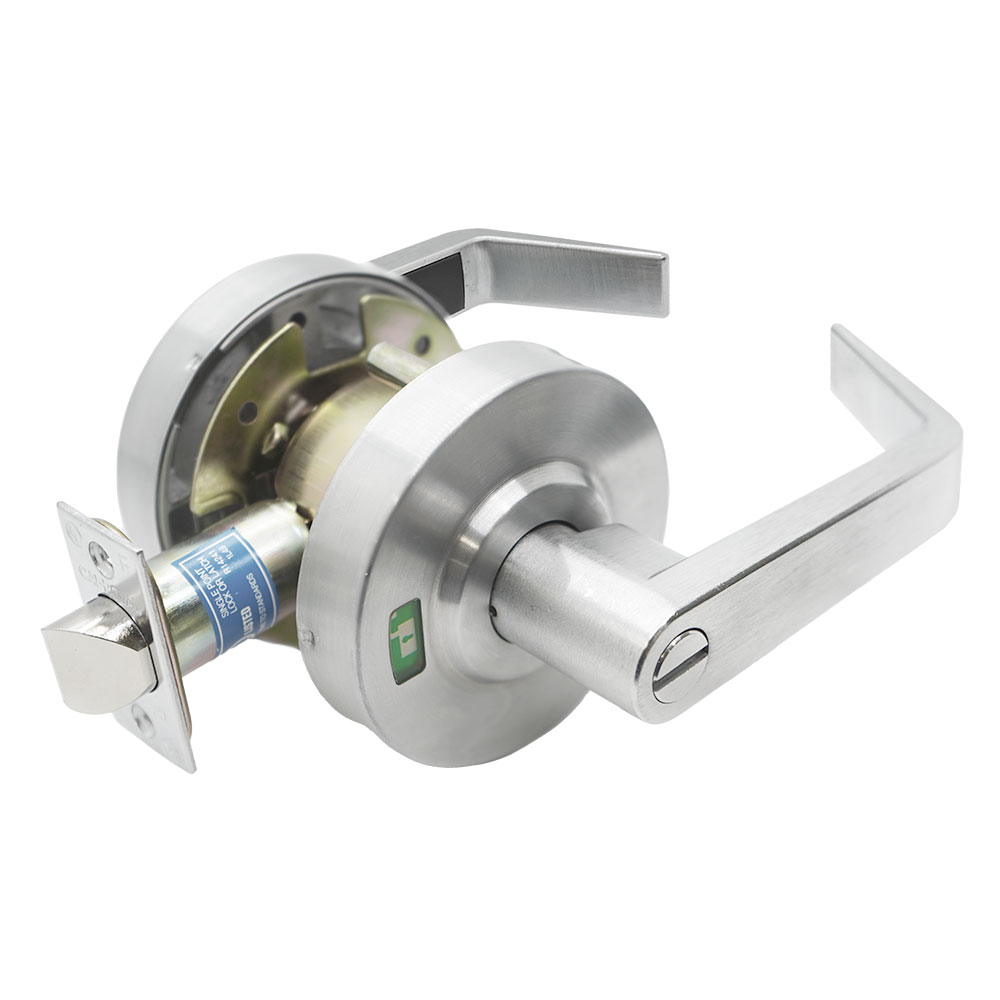

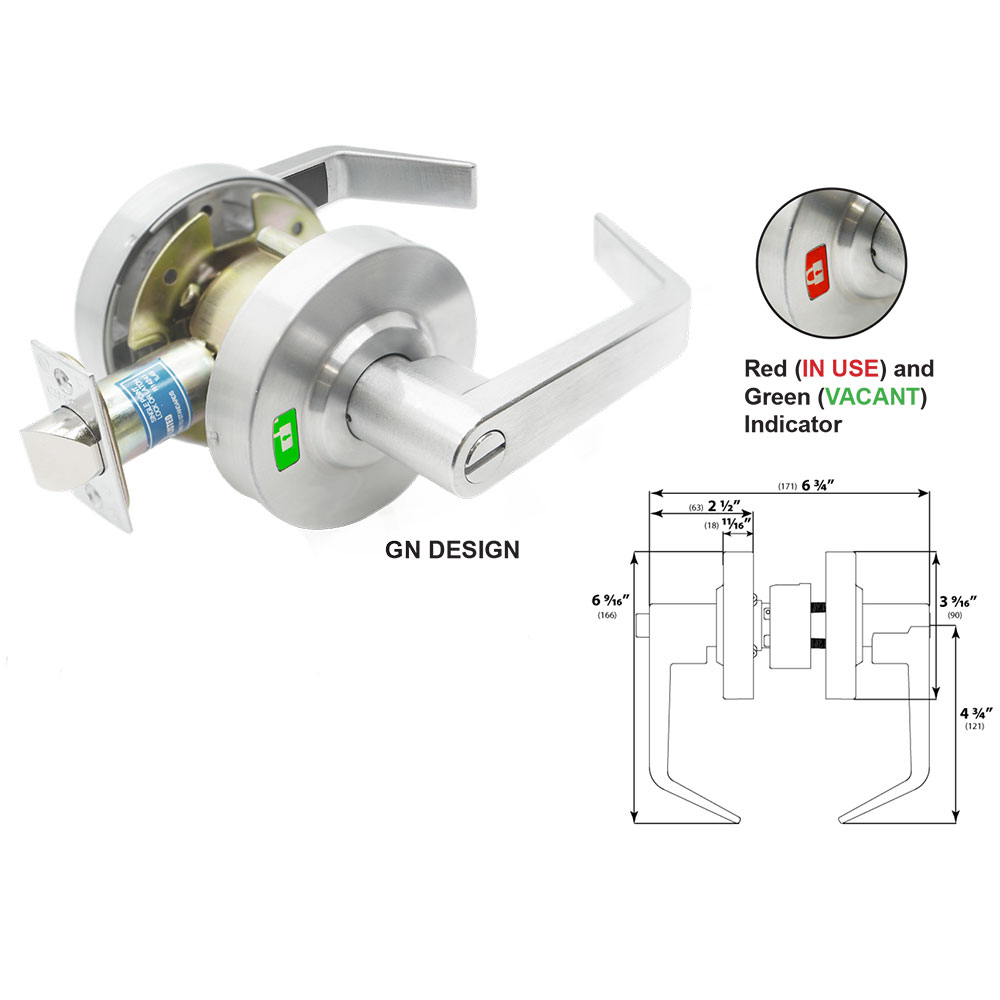

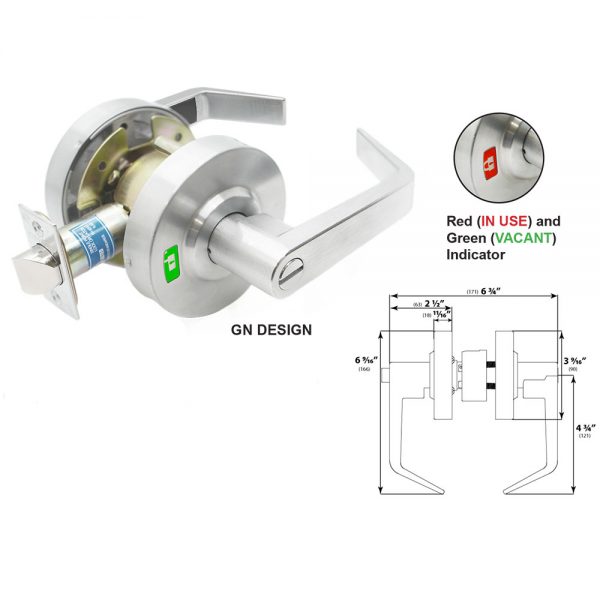

Cal-Royal Genesys Series, INDCGN20 Indicator Privacy Lever Lock
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings
ANSI Function F76 – Keyless – Push-button locking; Can be unlocked from outside with small screwdriver; Turn inside lever or close door to release button – Inside lever always free for immediate egress
- Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements
- Heavy-duty cylindrical leversets
- Non clutch mechanism, fixed thru-bolt installation
- ADA Compliant
| Brand | |
|---|---|
| Finishes | US1 (622) Flat Black, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome |
| Lock Function | Privacy with Indicator |
| ANSI/BHMA Standard | ANSI/BHMA A156 2 Series 4000 Grade 1 |
| Usage | Heavy Duty |
| Latch | 1/2" throw – 1-1/8" x 2-1/4" face |
| Backset | 2-3/4" |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| Fire Rating | UL/cUL listed up to 3 Hours |
| Warranty | Limited Lifetime Warranty |
