Product Overview
Cal-Royal Pioneer SL Series Cylindrical Lever Lock, ICSL03 Classroom Function, Small Format Interchangeable Core Prep, Less Core
Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

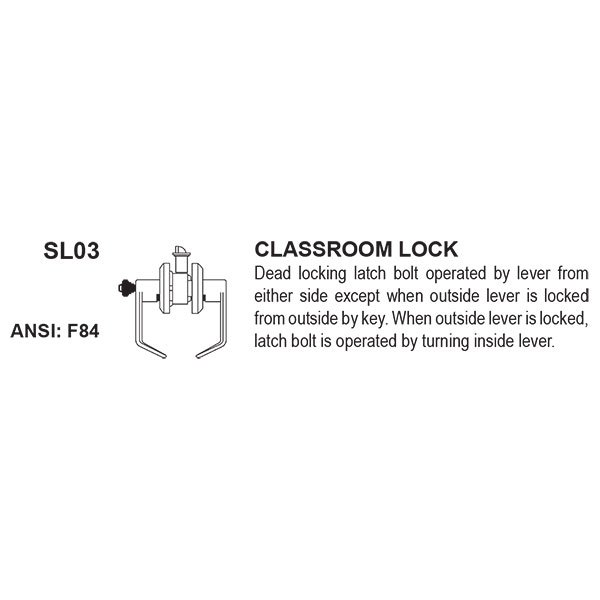

ANSI Function F84 – Deadlocking latch bolt by levers. Outside lever is locked by key in outside lever. Inside lever is always free.
- SFIC = Small Format Interchangeable Core (Core Sold Separately)
- Optional thru-bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Meets ADA requirements specially designed for Barrier-Free application
- Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Brand | |
---|---|
Finishes | US1 (622) Flat Black, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome |
Lock Function | Classroom |
ANSI/BHMA Standard | Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 |
Fire Rating | UL/cUL listed up to 3 Hours |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Usage | Medium Duty |
Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
Backset | 2-3/4" |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Handing | Non-Handed |
Door Thickness | 1-3/8" to 1-3/4" |
