Cal-Royal ICGYS00 Entrance/Office Lever Lock, Schlage Full Size Interchangeable Core Prep

Usually Ships: 2-3 Business Days
  • Heavy-Duty, BHMA/ANSI Grade 1 certified
  • Schlage full size interchangeable core prep (core sold separately)
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

Cal-Royal Genesys Series, ICGYS00 Entrance Lever Lock, Schlage (FSIC) Full Size Interchangeable Core Prep

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

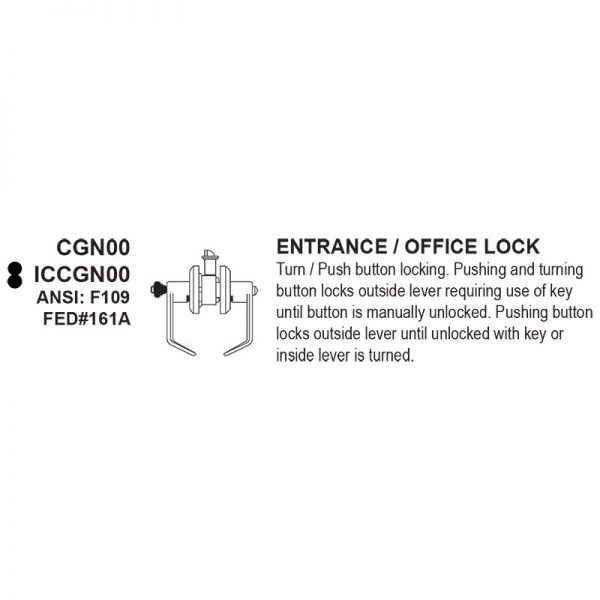

ANSI Function F109 – Turn/Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.

  • Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements
  • Heavy-duty cylindrical leversets
  • Clutch mechanism, fixed thru-bolt installation
  • ADA Compliant

codes

Brand

Finishes

US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome
Lock Function

Entry (Entrance)
Usage

Heavy Duty
ANSI/BHMA Standard

ANSI/BHMA A156 2 Series 4000 Grade 1
Cylinder Format

Full Size Interchangeable Core (FSIC)
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Backset

2-3/4"
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non-Handed
Fire Rating

UL/cUL listed up to 3 Hours
Door Thickness

1-3/8" to 1-3/4"
