Product Overview
Cal-Royal Genesys Series, CGN07 Classroom Intruder Lever Lock
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings

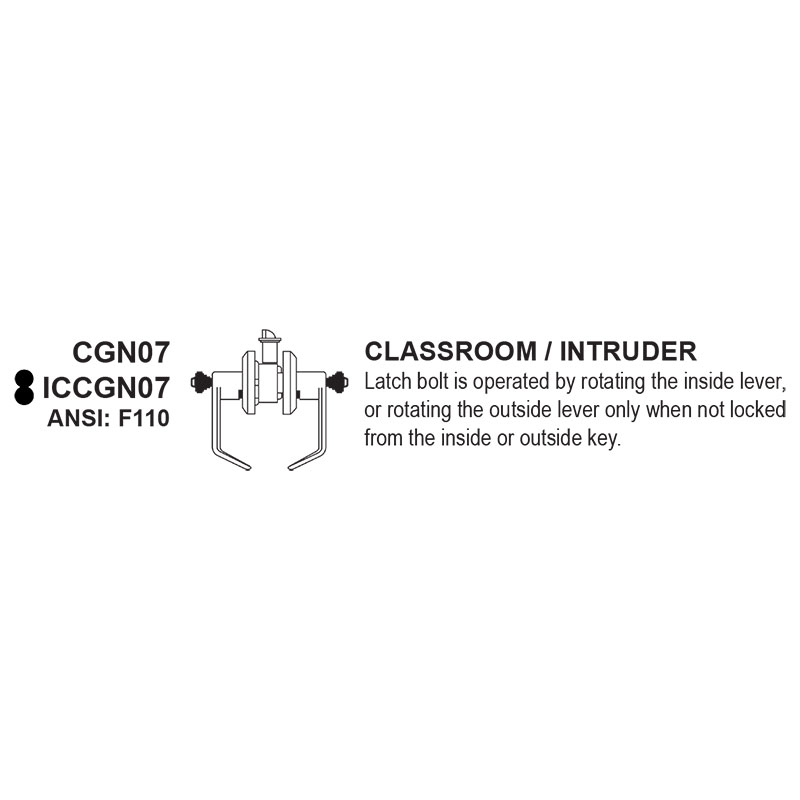

ANSI Function F110 – Latch bolt is operated by rotating the inside lever, or rotating the outside lever only when not locked from the inside or outside key.
- Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements
- Heavy-duty cylindrical leversets
- Clutch Lever: Free turning handle in the lock position without retracting the latch, to deter breaking of handle
- ADA Compliant
Brand | |
---|---|
Finishes | US26D (626) Satin Chrome |
Lock Function | Classroom Security |
ANSI/BHMA Standard | ANSI/BHMA A156 2 Series 4000 Grade 1 |
Usage | Heavy Duty |
Keyway | Schlage C Keyway |
Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
Backset | 2-3/4" |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Handing | Non-Handed |
Door Thickness | 1-3/8" to 1-3/4" |
Fire Rating | UL/cUL listed up to 3 Hours |
