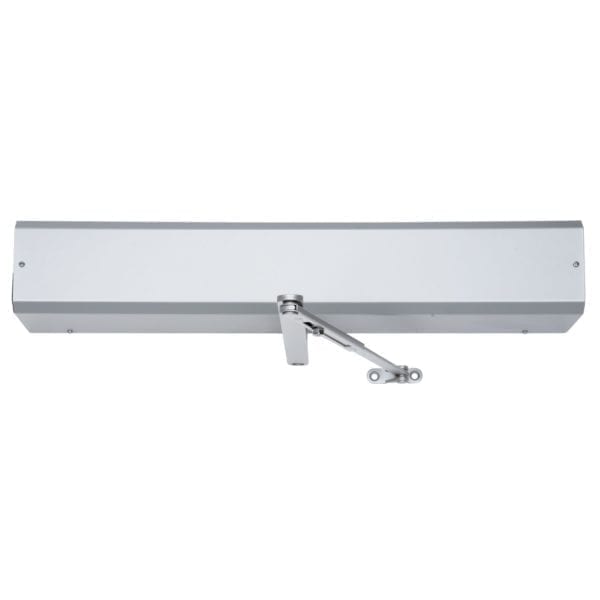

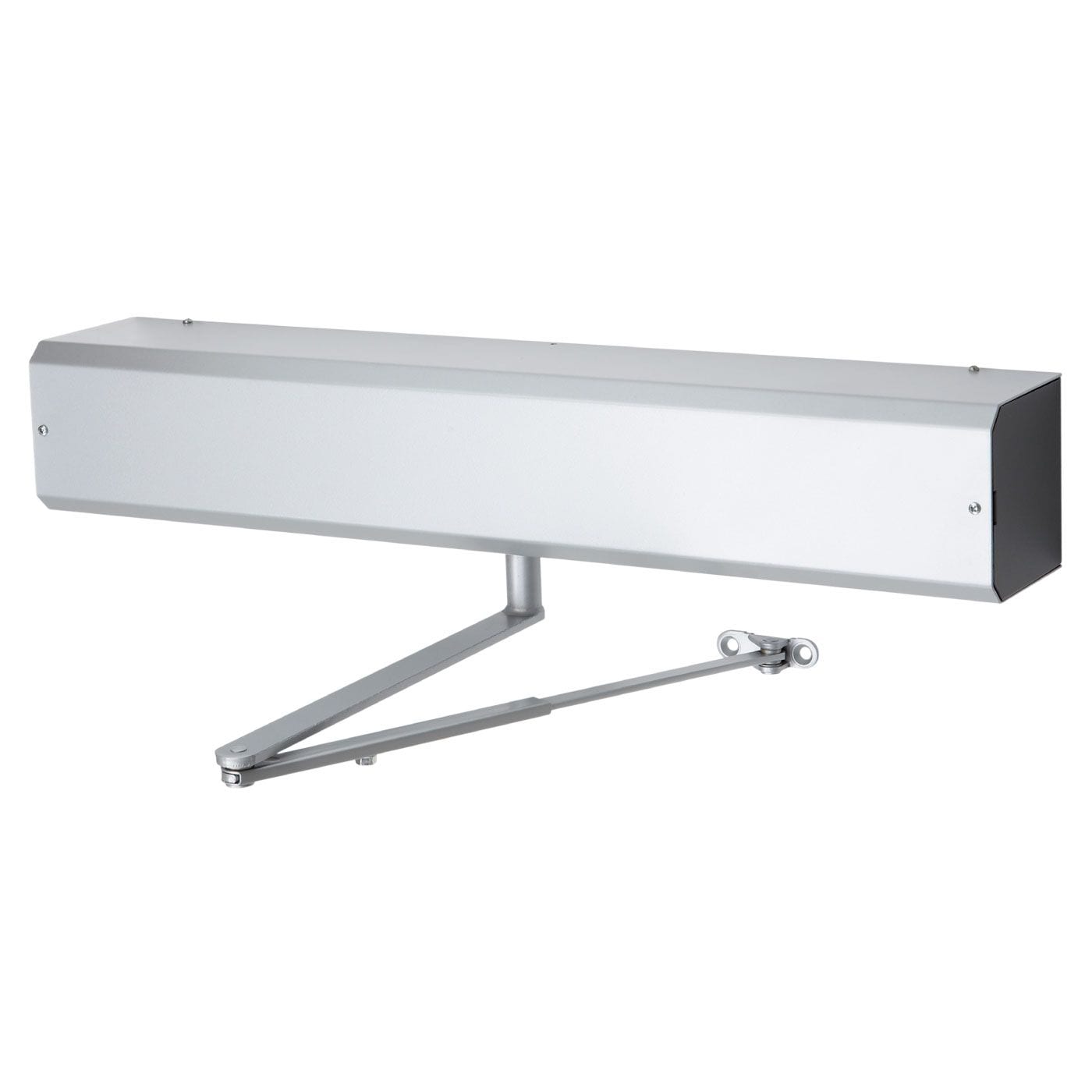

Falcon 8242 Automatic Operator – Push Side Mount


This item ships FREE! Usually Ships: 2-3 Days
  • 1-piece mounting bracket – Non-handed motor gearbox
  • On-board power supply (12 VAC)
  • SmartLatch technology

The 8200 Series automatic operator creates a smooth door opening for areas requiring easy accessibility and need the American Disabilities Act (ADA) compliance. It is designed for applications like assisted living and ambulatory care, wear ease of use is critical. Designed to fit perfectly – The small footprint and elegant design of the Falcon 8200 Series make it a perfect solution for a range of applications including Assisted living • Hospitality • Retail • Small office • Restaurants • Ambulatory care

  • Non-handed motor gearbox uses mechanical controls to act as a size 3 door closer in manual operation
  • One-piece mounting bracket eliminates the need for end caps, reducing parts and installation time
  • Intelligent control box provides the most precise door operation and includes adjustable features for all commercial applications



Standard Duty


Surface Mount – Push Side



Door Weight

Up to 200 Pounds


Conforms to ANSI A156.4, grade 1, NFPA 80, NFPA 101 and UL10C

Spring Size

Adjustable Spring Size 1-6

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code


689 Aluminum


1 Year

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
