45-RIM-ALUM

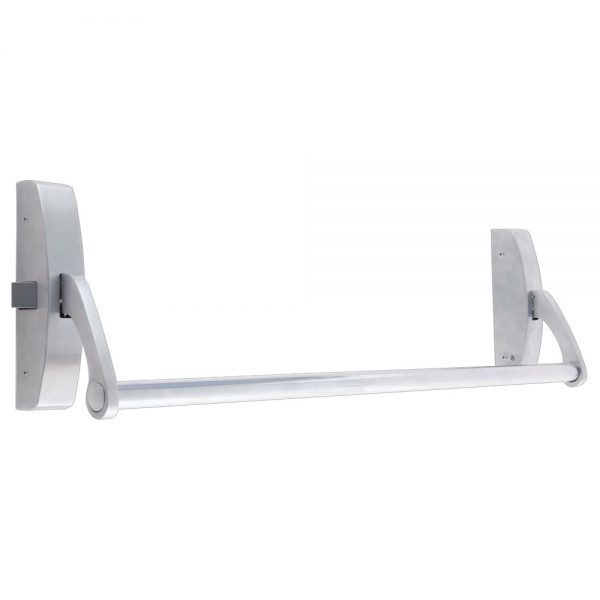

Cal-Royal 45-Rim Narrow Stile Cross Bar Type Panic Rim Exit Device

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Handed, easily field reversible
  • Exit Only (trim sold separately)

Available Options:
Clear

Product Overview

Cal-Royal 45-Rim Grade-1 Narrow Stile Cross Bar Type Panic Rim Exit Device, Exit Only

For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

  • Exit Only – (Outside Trim Sold Separately)
  • Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience.
  • Americans with Disability Act (ADA) compliant. 5lbs opening force on ADA products only

Models: 45-RIM-36-LHR-ALUM, 45-RIM-36-RHR-ALUM, 45-RIM-36-LHR-DURO, 45-RIM-36-RHR-DURO

Brand

Finishes

ALUM Aluminum, DURO (Dark Bronze)
Length

36" (For 30” to 36” doors)
Usage

Medium Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Fire Rating

Non-Fire-Rated
Dogging Feature

Half turn hex dogging standard
Latchbolt

Stainless Steel S304 material, 11/16” throw
Strike

(610) Roller Rim Strike
Projections

Neutral 5-13/64”, Depressed 4-7/32”
Door Thickness

1-3/4" to 2-1/4"
Stile Type

Narrow
Handing

Handed (LHR – Left Hand Reverse or RHR – Right Hand Reverse)
ADA Compliance

ADA Compliant
Warranty

Limited Lifetime Warranty
