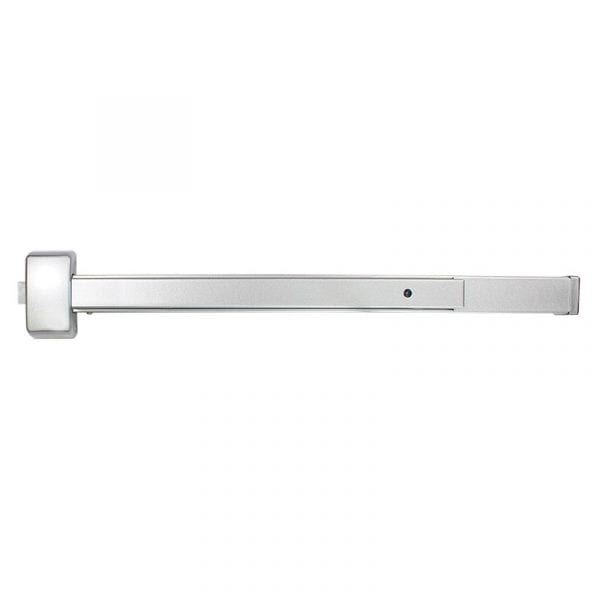

Cal-Royal A2200/AF2200 Rim Exit Device

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Retrofits Sargent 2828/2838 Series
  • Exit only (outside trim sold separately)

Available Options:
Clear

Product Overview

Cal-Royal A2200 & AF2200 ADA Series Grade-1 Rim Type Exit Device, Exit Only

Uncompromising security and safety in single and double fire exit doors

  • Exit Only – (Outside Trim Sold Separately)
  • ANSI A156.3, Grade-1 exit device
  • Retrofits Sargent 2828 and 2838 Series
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • F2200 UL Listed for Fire Exit Hardware (3 hours)
  • Chassis mounted unit construction
  • Non-handed for easy installation
Brand

Finishes

GOLD (Brass), ALUM (Aluminum), DURO (Dark Bronze), L1 Black
Length

2'0" (2'0" Door), 3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Usage

Medium Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Fire Rating

2200EO: Non-Rated – F2200EO: UL Listed 3 Hour Rated
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Stile Type

Wide (Standard)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Strike

239 packed standard
Latchbolt

Stainless steel 3/4” throw
Projections

2-1/2" active, 1-3/4" dogged
Handing

Completely Reversible
Trim

None – Exit Only (Outside Trim Sold Separately)
Warranty

Limited Lifetime Warranty
