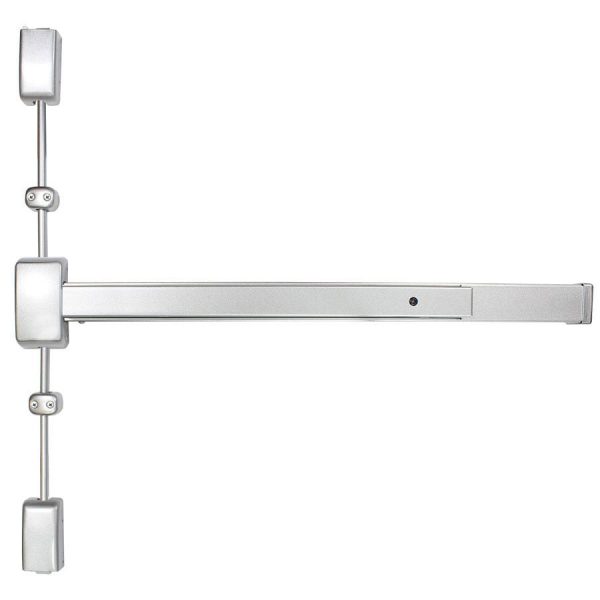

Cal-Royal A2260V/AF2260V Surface Vertical Rod Exit Device

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • For use with metal or wood doors
  • Exit only (outside trim sold separately)

Available Options:

Cal-Royal A2260 & AF2260 ADA Series Grade-1 Surface Vertical Rod Exit Device, Exit Only

Uncompromising security and safety in single and double fire exit doors.

  • Exit Only – (Outside Trim Sold Separately)
  • ANSI A156.3, Grade-1 exit device
  • Retrofits Sargent 12-2828 and 12-2838 Series
  • Conforms & Meets ADA Regulations
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes
  • -F Models UL Listed for Fire Exit Hardware (3 hours)
  • Chassis-mounted unit construction

Models

  • 2260V 36″ x 84″ and F2260V 36″ x 84″ – (30″- 36″ door width – Maximum cut down 6″)
  • 2210V 24″ x 84″ and F2210V 24″ x 84″ – (22″ – 24″ door width – Maximum cut down 2″)
  • 2280V 48″ x 96″ and F2280V 48″ x 96″ – (36″- 48″ door width – Maximum cut down 12″)
  • 2290V 36″ x 96″ and F2290V 48″ x 96″ – (30″- 36″ door width – Maximum cut down 6″)

exit_logos

Brand

Finishes

ALUM (Aluminum), DURO (Dark Bronze), L1 Black

Size

24" x 84", 36" x 84", 36" x 96", 48" x 96"

Usage

Medium Duty

Handing

Handed – Field Reversible

ANSI/BHMA Standard

BHMA/ANSI A156.3, Grade 1 Certified

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

A2210V/A2260V/A2280V/A2290V Non-Fire-rated – AF2210V/AF2260V/AF2280V/AF2290V 3 Hour Fire-Rated

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Device Type

Surface Rod Device

Warranty

Limited Lifetime Warranty
