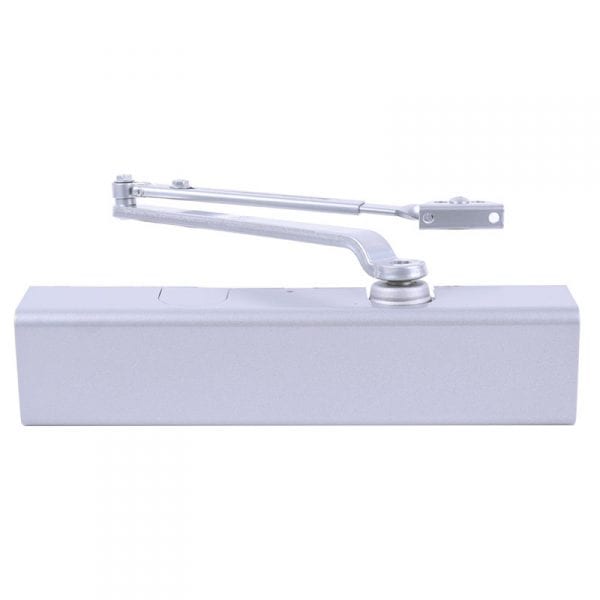

Arrow 5016N Door Closer

$289.28

This item ships FREE! Usually Ships: 5-10 Business Days
  • Medium Duty – Grade-1
  • Adjustable Spring Size 1-6
  • Regular, Top Jamb or Parallel Arm Mount

The Arrow 5016N Series Surface Applied Door Closers are ideal for use in commercial and institutional facilities where there is a demand for reliability and flexibility.

  • 5016N closers are adjustable for spring sizes 1 through 6
  • Cast aluminum body
  • Hardened steel rack and pinion
  • High tensile steel springs
  • Staked valves
  • UL/cUL listed – UL10C listed for positive pressure to comply with UBC-72 (1997)
  • Meets the requirements of ANSI A156.4 and ANSI ICC A117.1
Brand

Finish

Aluminum

Usage

Medium Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Templating (Hole Pattern)

3/4" x 12"

Cover

Full Cover

Fire Rating

UL/cUL listed

ANSI/BHMA Standard

Meets the requirements of ANSI A156.4 and ANSI ICC A117.1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Body Construction

Cast Aluminum Body
