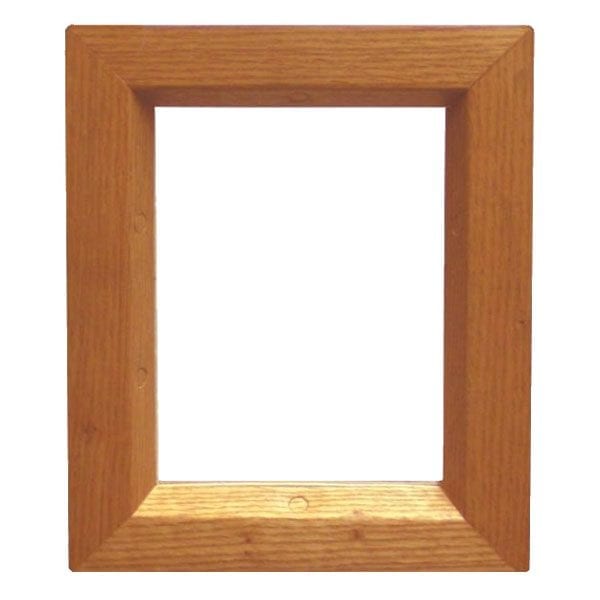

Air Louvers VWL Woodlite Slimline Steel Vision Lite Frame with Wood Veneer for 3/16″ to 1/4″ Glass, 1-3/4″ Thick Door

Usually Ships: 20-30 Business Days
  • 20-Gauge steel frame w/ .010 unfinished wood veneer
  • For 3/16″ to 1/4″ glass (sold separately)
  • For use with 1-3/4″ thick doors

Available Options:

Clear

Low profile wood veneer vision lite for 1-3/4″ thick doors. Ready to be finished with the surface treatment of your choice. Select from 5 wood types.

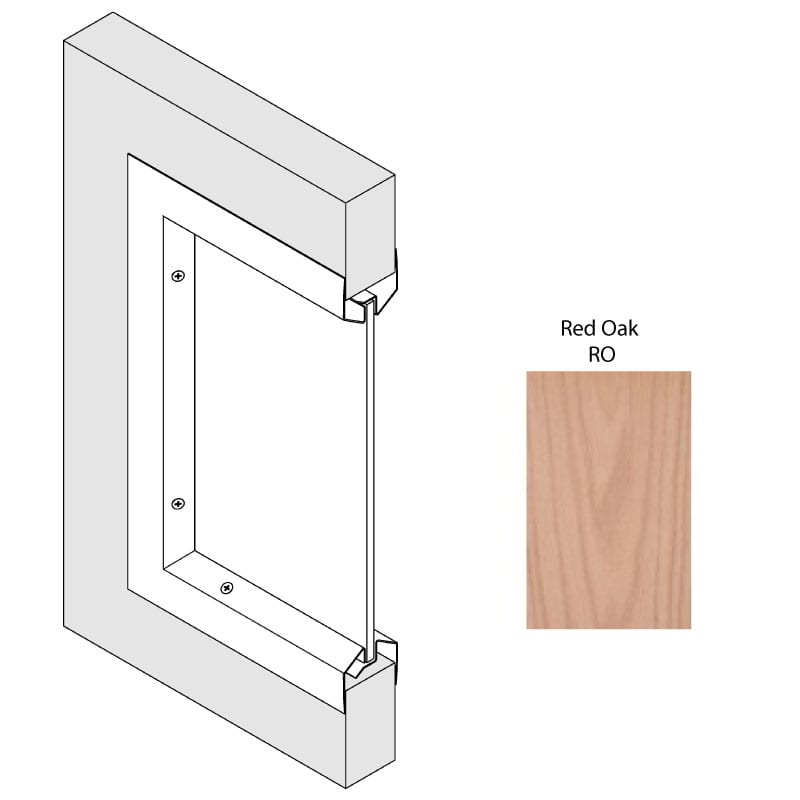

Self-Attaching, Beveled Vision Lite with Single Side Fasteners. Continuous glass retainer, countersunk mounting holes in the bevel on the non-corridor side.

  • 5 veneer types – .010 unfinished veneer
  • Wood is raw and does not have a stain, clear coat, or finish – applied by others
  • Mitered and welded corners with countersunk mounting holes
  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Visible light is 2″ under rough opening size. Glass size is 1″ under order size
  • 1-1/4″ trim with radius corners, mitered and welded





This product is made to order and non-returnable or refundable.

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

Brand

Finish

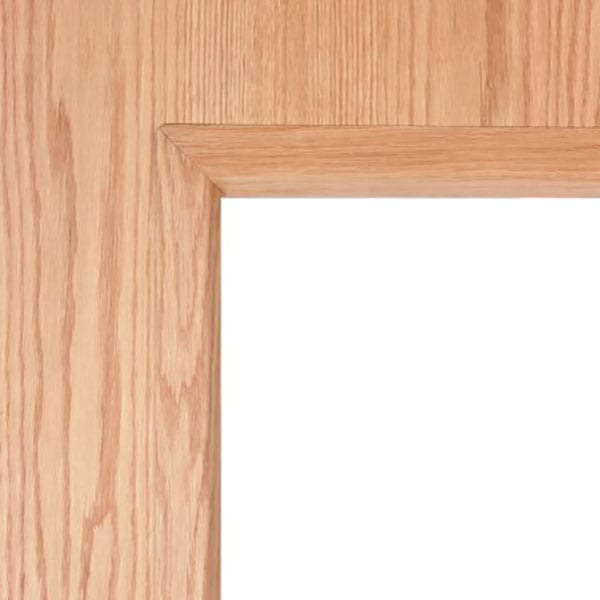

Cherry (CH), Maple (MA), Red Oak (RO), Walnut (WN), White Birch (WB)

Order Size

6" x 27", 8" x 32", 12" x 12", 24" x 30", 24" x 32", 24" x 56", 24" x 64"

Frame Profile

Low

Frame Construction

20 Ga. Cold Rolled Steel with .010 Wood Veneer

Frame Fire-Rating

Up to 90 Minutes. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

Glass Thickness

3/16" to 1/4"

Door Thickness

1-3/4"

Fasteners

#8 x 1" flathead phillips SMS. Woodlite has wood veneer plugs covering screw heads

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
