Air Louvers VLFR Round Vision Lite PAK with 1/4″ Clear Tempered Safety Glass

Usually Ships: 20-30 Business Days
  • Complete Lite Kit = Frame, Glass, and Glazing Tape
  • Includes round 1/4″ thick clear tempered safety glass
  • For use with 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

Add interest and style to any door with the porthole type VLFR round vision lite kit

Designed for use with 1-3/4″ thick doors.

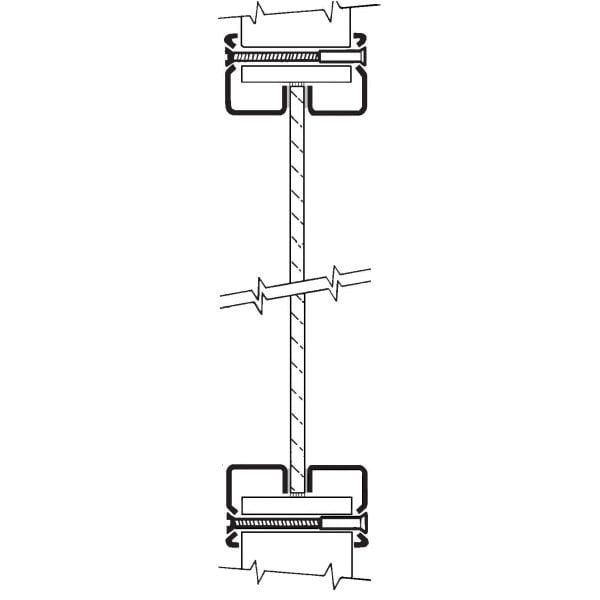

  • Circular – one-piece construction with no joints with 90-degree return
  • 18 gauge cold rolled steel frame (mineral bronze finish)
  • Countersunk mounting holes on both sides
  • Order size equal to cutout size  (12″, 18″ or 24″ Diameter)
  • Glass size is 1″ under cutout size, Visible glass is 2″ under
  • Includes 1/4″ Clear Tempered – CAT II Impact-Rated (Safety Glass) – Heat-treated clear safety glass that breaks into small particles
  • Tempered Glass – Four Times Stronger Than Annealed Glass
  • Glass Approvals: ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Finishes

Mineral Bronze (B)
Order Size

12" Round, 18" Round, 24" Round
Frame Profile

Standard
Glass Type

Clear Tempered Glass
Glass Thickness

1/4"
Frame Construction

18 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 32 Phillips head thru bolts with blank head one side to match finish
Glass Appearance

Clear
Glass Light Transmission

Approx. 86%
Glass Impact Safety Rating

ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II
Door Thickness

1-3/4"
