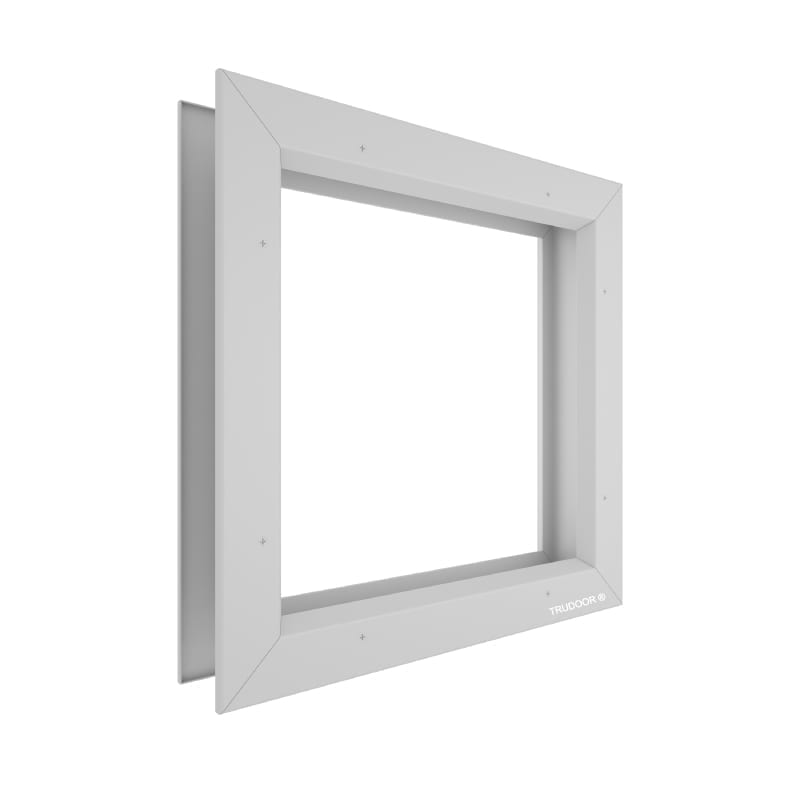

Air Louvers VLFEZIG Vision Lite Frame for 1″ Glass, 1-3/4″ Thick Door

Usually Ships: 3-5 Business Days
  • 20-Gauge Cold Rolled Steel Frame
  • For 1″ Insulated Glass (Not Included)
  • For use with 1-3/4″ Thick Steel or Wood Doors

Available Options:
Clear

Product Overview

Self-Attaching, Beveled Vision Lite with Single Side Fasteners for steel and wood Doors. 1-1/4″ trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes on the face of the non-corridor side. Frame projects 3/8”.

  • Mitered and welded corners with counter sunk mounting holes

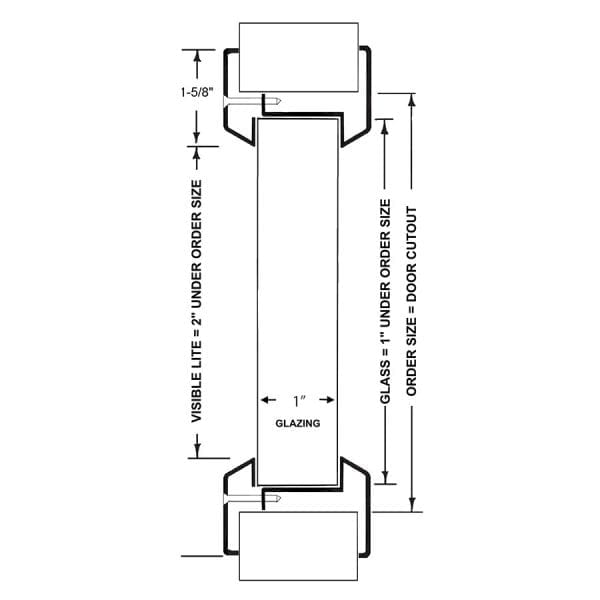

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glass / Glazing Tape Not Included – 1″ thick insulated glazing to be ordered separately from our glazing section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Fire-rated up to 3 hours

Brand

Finishes

Gray (G), Mineral Bronze (B)
Order Size

5" x 35", 6" x 27", 7" x 22", 8" x 32", 12" x 12", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 60", 24" x 64"
Frame Profile

Standard
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fire-Rating

3 Hour – Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure – WHI Listed
Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included
Glass Thickness

1"
Door Thickness

1-3/4"
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
