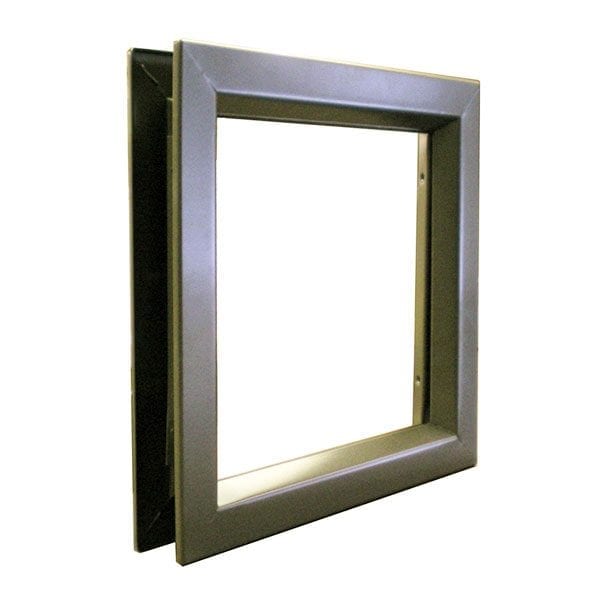

Air Louvers VLFEZ Vision Lite Frame for 3/16″ to 1/4″ Glass, 1-3/4″ Thick Door

Usually Ships: 10-20 Business Days
  • 20-Gauge cold rolled steel frame
  • For 3/16″ to 1/4″ Glass (sold separately)
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Steel vision lite frame for 3/16″ to 1/4″ thick glass, for 1-3/4″ thick doors

  • Mitered and welded corners with countersunk mounting holes

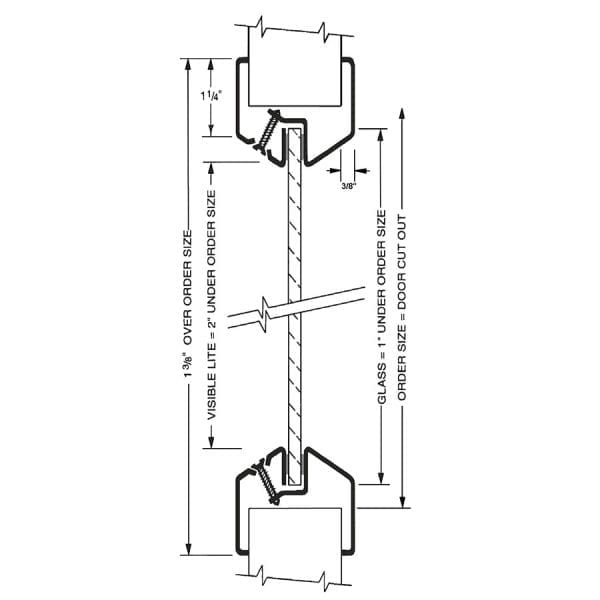

  • Visible light is 2″ under rough opening size. Glass size is 1″ under order size
  • Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Mineral Bronze Finish

Brand

Finishes

Mineral Bronze (B)

Order Size

6" x 27", 7" x 22", 8" x 32", 12" x 12", 24" x 24", 24" x 30", 24" x 32"

Frame Construction

20 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included

Glass Thickness

3/16" to 1/4"

Door Thickness

1-3/4"

Frame Fire-Rating

3 Hour – Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure – WHI Listed

Door Applications

1-3/4" Metal and Wood Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
