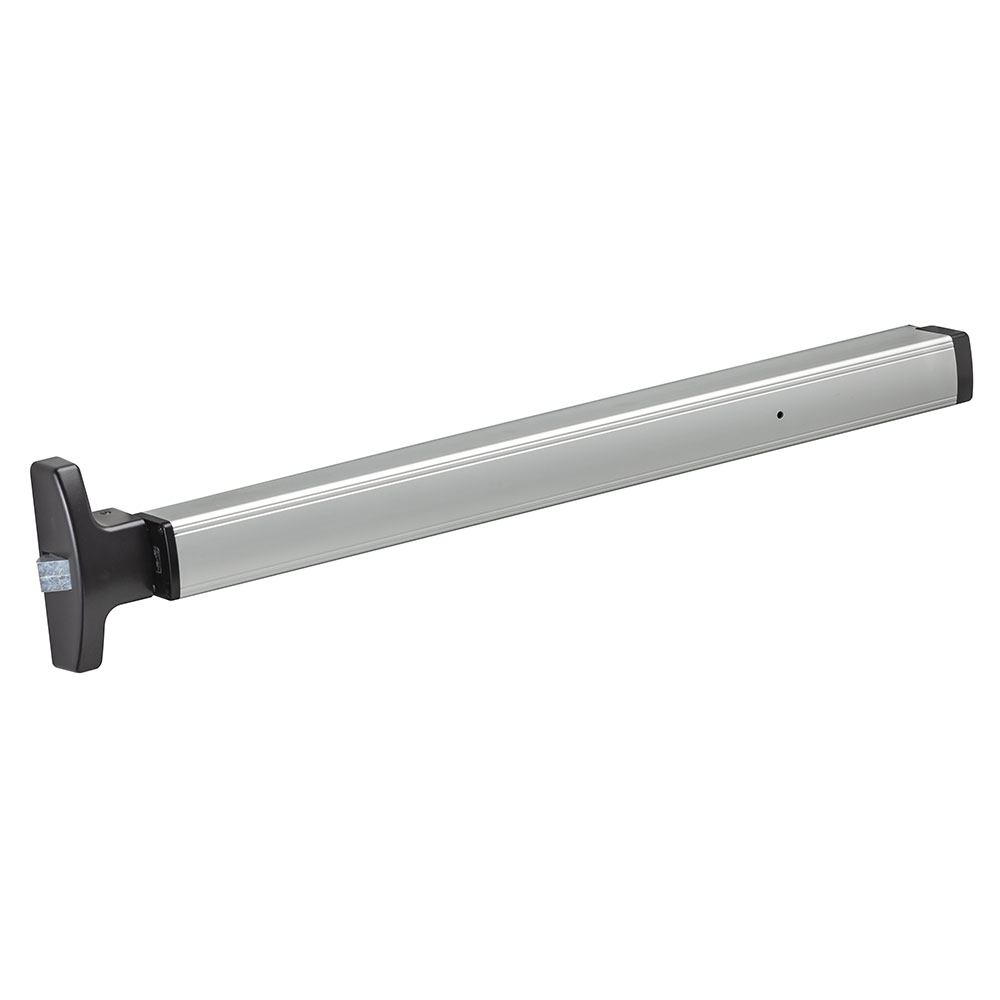

Falcon 1790EO Narrow Stile Rim Exit Device for Aluminum Doors, Exit Only

Usually Ships: 1-2 Business Days
  • ANSI/BHMA A156.3 Grade 1 Certified
  • Fits door stiles as narrow as 1-3/4″
  • For aluminum storefront doors

Available Options:

Clear

Falcon 1790EO Rim Type Pushpad Exit Device, Exit Only

The 1790 Series narrow stile touch bar exit device provides safe and reliable egress that is ideal for aluminum doors. The 1790 is certified ANSI/BHMA A156.3 Grade 1 and boasts a 10-year limited warranty. The 1790 Series rim device is typically used in applications where maintenance is a concern since the rim device has fewer parts and pieces than other exit devices. This results in less maintenance and adjustment. The streamlined design has no openings for chains, reducing code infringements risks and offers increased building security by eliminating tampering and forced entry via coat hangers and other tools.

  • 1790EO = Exit Only (No Outside Trim Included)
  • Additional parts are required when using a rim cylinder (for device with cylinder, see 1792NL-OP/HB-OP)
  • Projections: 3-3/8″ in neutral position – 2-3/8″ in dogged position
  • Pushbar Height: 2-1/2″
Brand

Finishes

DC13 Anodized Duranodic, US28 (628) Anodized Aluminum, DC35 Black Anodized Aluminum

Length

36" (30" to 36" Door Width), 42" (36" to 42" Door Width), 48" (42" to 48" Door Width)

Usage

Medium Duty

ANSI Grade

Carry UL label and approved for life safety. Certified ANSI A156.3 grade 1 standards.

Stile Type

Narrow

Strike

TSD35 supplied standard 3" H x 2" W x 1/2" thick

Latchbolt

3/4" throw

Handing

Non Handed – Completely Reversible

Minimum Stile Width

1-3/4"

Door Applications

1-3/4" Aluminum Doors
