Adams Rite 8200 Narrow Stile Surface Vertical Rod Exit Device

Usually Ships: 3-5 Business Days
  • For aluminum doors (minimum 2″ stile)
  • Patented top latching mechanism interlocks door to frame
  • Clean sightlines, easy to install

Available Options:

Clear

Adams Rite 8200 (8211 / 8222 / 8233) Narrow Stile Surface Vertical Rod Exit Device, For Aluminum Door Applications

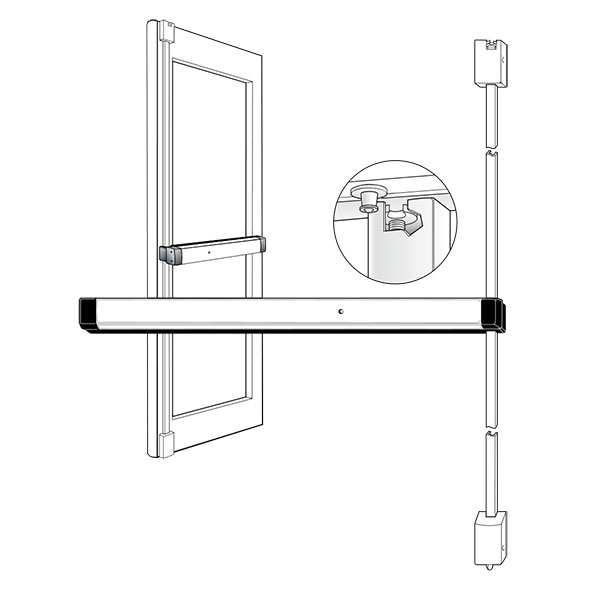

The 8200 Series Narrow Stile Surface Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with surface vertical rods for two- point locking. Designed for use in applications with single doors or pairs of doors

  • Exit Only  (outside trim sold separately)
  • Strong, durable construction for a high level of security
  • Available in Clear Anodized Aluminum (8211), Dark Bronze Anodized (8222), and Black Anodized (8233)

Certifications:

  • UL 305 Panic hardware
  • ANSI/BHMA A156.3, Grade 1
Brand

Finishes

313 Dark Bronze Anodized, 335 Black Anodized, 628 Anodized Aluminum

Length

36", 42", 48"

Device Type

Surface Rod Device

ANSI Grade

ANSI/BHMA A156.31, Grade 1

Usage

Medium Duty

Handing

Non-Handed

Stile Type

Narrow

Stile

Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors

Door Height

Standard configuration suitable for doors up to 8' door

Dogging Feature

Half turn hex dogging standard

Projections

2-5/8" when fully projected, 1-5/8" when dogged

Fasteners

Standard self-tapping screws

Door Applications

1-3/4" Aluminum Doors
