Product Overview
Accentra (formerly Yale) 2100/2100F Economy Rim Exit Device, AU-NTT613-NR-626 nexTouch PushButton Rim Exit Device Trim
Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. The 2100 Series is a perfect fit for both back of house and prominent openings in office buildings, retail, and a long list of other facilities that require both performance and style.
- Tough: Sturdy construction is ideal for meeting the rigors of demanding industry environments
- Economical: Works for many building projects, regardless of budget
- Strong & Durable: ANSI/BHMA Grade 1 Certification ensures long life and reliability

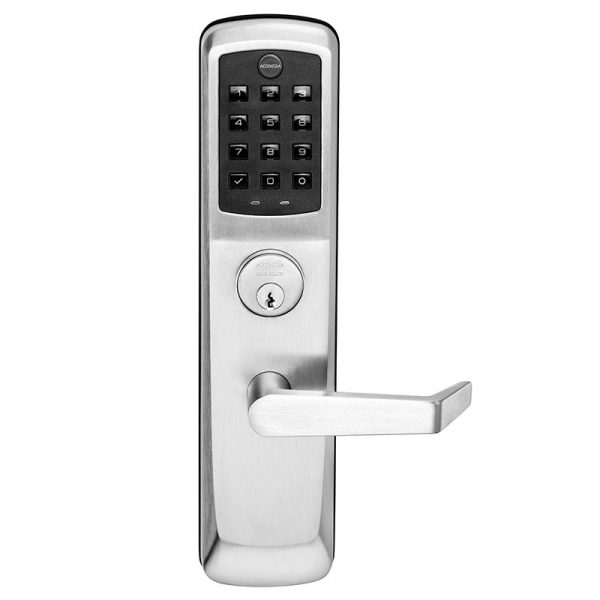

AU-NTT613-NR Keypad Lever Trim
- Standalone Electronic Rim Exit Device Trim
- Up to 500 Unique PIN Codes
- Includes 2153 cylinder
- 626 satin chrome lever (device is 630 satin stainless steel finish)
- Easily Re-handed in the field – Shipped as RHR
- Bolt retracted by pushbar on interior and lever on outside except when outside lever is locked.
- Mechanical Key Override (key override unlocks the outside lever only)
- 9V battery power backup prevents lockout even if the batteries fail
- Easy Traffic Control: Engineered to provide an easy-to-use access control solution to protect your facility and personnel
- Key-free Convenience: Reduces investment and maintenance costs associated with managing keys
Brand | |
---|---|
Finishes | 630 Stainless Steel Device w/ 626 Satin Chrome Lever |
Length | 36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors) |
Dogging Feature | Hex key dogging standard on non-fired-rated devices |
Lever Design | AU (Augusta) |
Cylinder | 2153 Accentra/Yale E1R Para Keyway |
Power | Battery-operated, with low power indicator, or hard-wired (9 Volt external power supply) option. Blinking designation signals internal 4 AA alkaline batteries are low. |
Stile Type | Wide (Standard) |
Minimum Stile Width | 4-1/2" |
Fire Rating | 2100: Non-Rated – 2100F: 3 Hour Fire-Rated |
Usage | Medium Duty |
ANSI/BHMA Standard | Certified ANSI/BHMA A156.3, Grade 1 |
Handing | Completely Reversible |
Latchbolt | 3/4" deadlocking stainless steel pullman-type |
Strike | 757F, 793 optional (double door application, panic only) |
Projections | 2-1/2" active, 1-3/4" dogged |
Fasteners | Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
Door Applications | 1-3/4" Metal, wood or composite doors |
