Product Overview

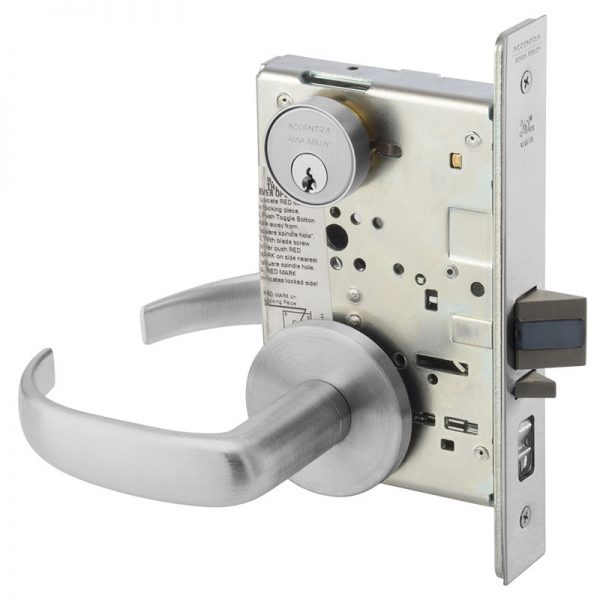

Yale PBR8807FL ANSI/BHMA Grade 1 Certified Mortise Lock, Entry Function, Sectional Pacific Beach PBR Lever/Rose Trim
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.
ANSI F04 – Entry – For office doors where locking is required. Latchbolt retracted by lever either side, except when outside lever is locked by stopwork activator. When outside lever is locked, latchbolt is operated by key outside and lever inside. Deadlocking latchbolt.
Requires Yale 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4″
- Latchbolt: 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Reversibility: Field reversible handing
| Brand | |
|---|---|
| Finishes | 626 Satin Chrome |
| Cylinder | 2153 (Para Keyway) or 2553 (Schlage C Keyway) 1-1/8" Mortise Cylinder w/ 2160 Cam |
| Lock Function | Entry (Entrance) |
| ANSI Function | F04 |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | Certified ANSI/BHMA A156.13, Series 1000 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | UL and cUL Listed – up to 3 Hours |
| Handing | Right hand is standard; Reversible in the field |
| Backset | 2-3/4" |
| Latchbolt | 3/4" throw, stainless steel one-piece anti-friction |
| Strike | 4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Case | wrought steel, zinc dichromated |
| Hubs | 3/8" solid steel, fine-blanked and heat treated for additional strength |
| Armored Front | 8" x 1-1/4" |
| Door Thickness | 1-3/4" |
| Warranty | 10 Years |
| Lever Design | PBR (Pacific Beach) |
