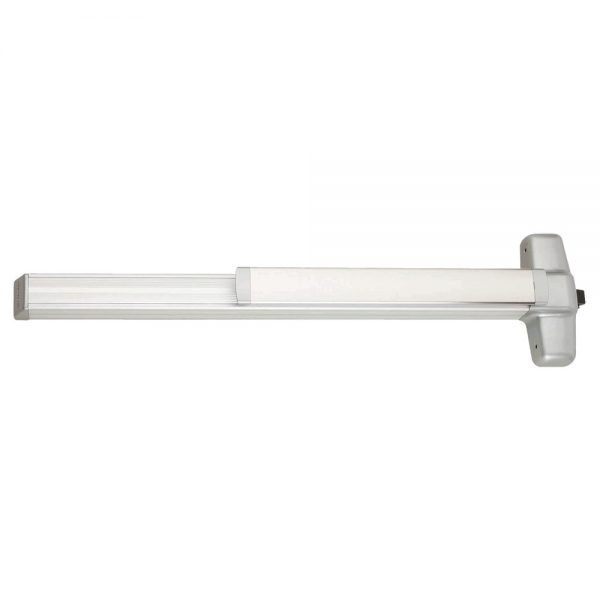

Von Duprin 99EO-F Fire-Rated Rim Exit Device

Usually Ships: 1-2 Days
  • Heavy Duty – ANSI/BHMA Grade-1 – Made in USA
  • UL Listed Fire Exit Hardware, Up to 3 Hours
  • ANSI Function 01, Exit Only (Trim Sold Separately)

Available Options:

  • Anodized Aluminum
  • Black
  • Bright Brass
  • Bright Chrome
  • Dark Bronze
  • Satin Brass
  • Satin Bronze
  • Satin Chrome
  • Satin Chrome AM (Antimicrobial)
Clear

High-performance, wide stile heavy-duty fire-rated rim exit device for high use and abuse applications

The 99EO-F device is for use with single fire doors or double doors with mullions. The 99 Series has been certified to the highest industry standards and is used in schools, hospitals, government buildings, and other commercial and institutional applications.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • Deadlocking latchbolt standard
  • UL Listed fire exit hardware (3 Hour Fire-rated)
  • Stock Sizes: 3′ and 4′ – Cut to size in the field
  • F299 Roller Strike (99F Strike Required (sold separately) with use of 9854/9954 mullions)
  • ANSI/BHMA Certified, Grade-1

Brand

Finishes

313 Duranodic Dark Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US26D-AM (626AM) Satin Chrome Antimicrobial, US28 (628) Anodized Aluminum

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

UL listed A or B label Fire-Rated (3 Hours)

Hand

Non-handed

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

None

Strike

299F fire-rated roller strike

Stile Type

Wide (Standard)

Center Case

8" x 2-3/4" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Fasteners

Includes screws for metal and wood doors

Door Applications

1-3/4″ Thick Doors

Product Number

99F-EO

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions
