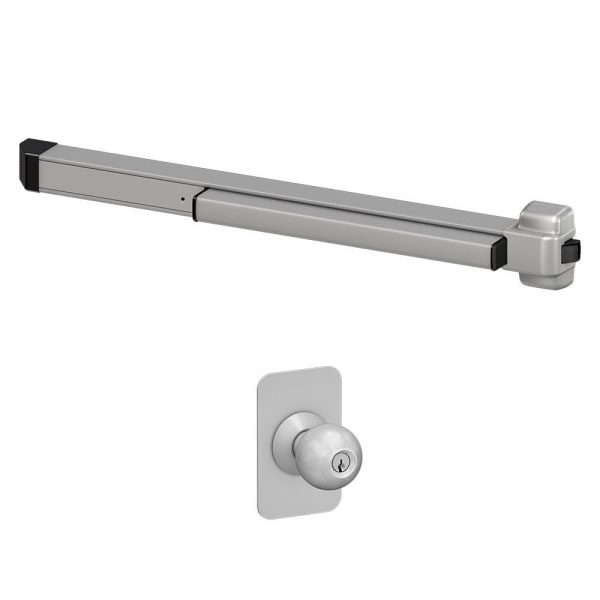

Von Duprin 22K Rim Panic Bar Exit Device with Knob

Usually Ships: 1-2 Business Days

ANSI/BHMA Grade-1 Certified – Made in USA
ANSI Function 08 (Key Locks/Unlocks Knob)
Includes 210K Knob Trim (Schlage C keyway)

Available Options:

Finish

Length

Clear

Quantity:

Von Duprin 22K Grade-1 Rim Exit Device with Trim, Knob with Escutcheon, Classroom Function

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

210K Entry Knob Trim

ANSI Function: 08 – Key locks and unlocks knob
10 gauge steel escutcheon and uses the Schlage “A” orbit knob with 6-pin “C” keyway
Escutcheon plate size: 3″ x 4-25/16″ x 3/32″
Projection: 2-15/16″

Brand	Von Duprin
Finishes	689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)
Length	3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)
Trim	210K
Hand	Device Non-Handed – Lever Field Reversible
Fire Rating	Non Fire-Rated
ANSI/BHMA Standard	ANSI/BHMA A156.3-2008 Grade 1 certified
Usage	Medium Duty
Latchbolt	Deadlatching, 3/4" throw
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Stile Type	Wide (Standard)
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
