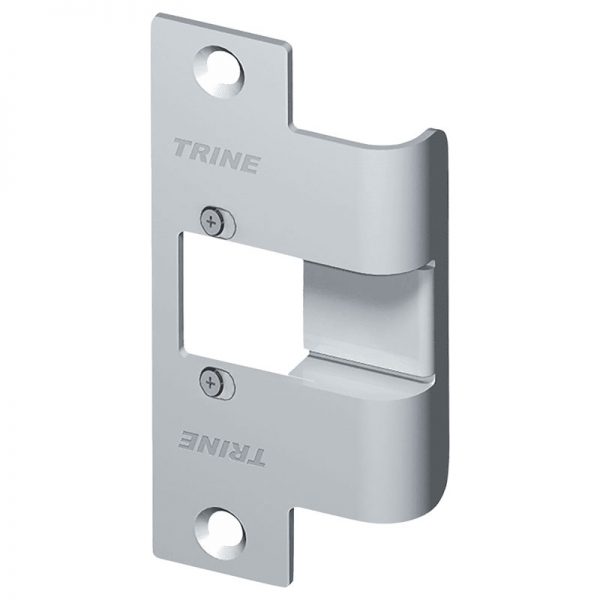

Trine 478X-375 – 3000 Series Electric Strike Faceplate, 4-7/8″ x 1-1/4″, 3/8″ Extended Lip

Usually Ships: 1-2 Business Days
  • Faceplate only, for use with 3000 Series strike body
  • For use with cylindrical locksets up to 5/8″ throw
  • Extended ramp to accommodate additional face of Timely frames (or similar)

Available Options:

Clear

Trine 478X-375 – 3000 Series Electric Strike Faceplate, 4-7/8″ x 1-1/4″, 3/8″ Extended Lip, For Timely Frames (or similar) Application

Frame features an extended ramp to accomodate additional face of Timely frames (or similar). Ramp has a 3/8”.extension. For new or replacement installations. Use with cylindrical locksets and deadlatches having up to 5/8” throw, based on 1/8” door gap. Provides a finished look for wood frames with trim.

  • Match with any 3000 Mechanism: 3012, 3024, 30LC, 30RS
  • ANSI A115.1 slight frame modification

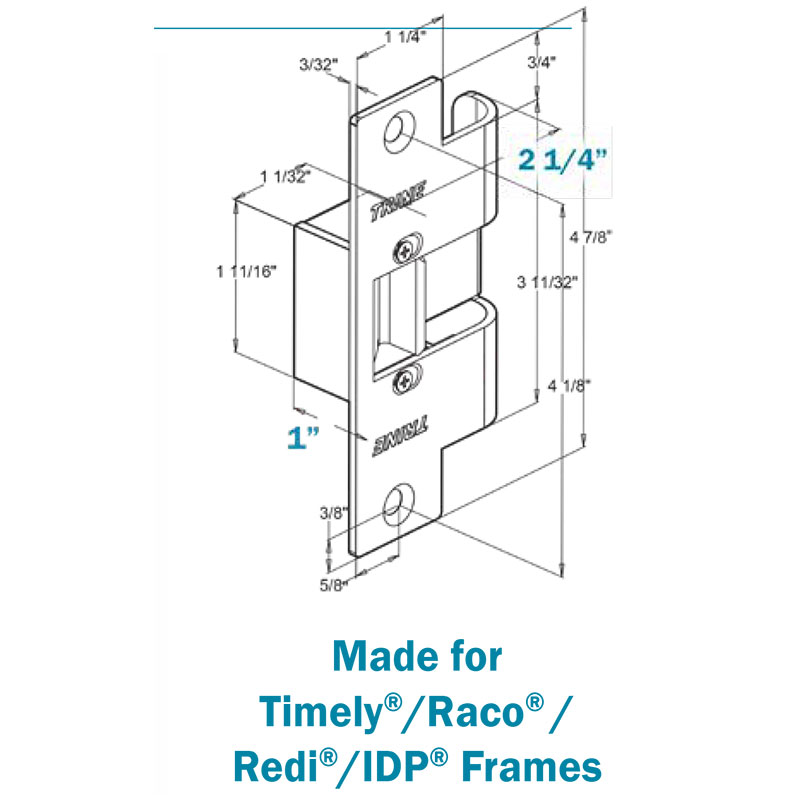

  • Face Plate 4-7/8″ x 1-1/4″ • Mortise Backset 1″ • Cavity Depth 1/2″ • Cavity Width 5/8″ • Cavity Height 1 1/8″
  • No ugly black ramps!
  • Extended ramp (.375”) accommodates snap-on additional frame face of Timely® & Redi® Frames
  • Eliminates traditional 4 7/8” ANSI strike cutting and black ramp extensions
  • 1/8″ Horizontal Adjustments help prevent door pre-load.
  • 60% less cutting of the frame.
  • Modular System: Always be prepared, go Modular. Use ANY of the 9 faceplates in the 3000 series with any 3012, 3024, 30LC or 30RS mechanism
Brand

Finishes

Dark Bronze Powder Coat, US3 (605) Bright Brass, US32D (630) Satin Stainless Steel

Faceplate

4-7/8" x 1-1/4"

Lock Type Compatibility

Cylindrical Lock, Deadlatch

Part Type

Electric Strike Faceplate

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
