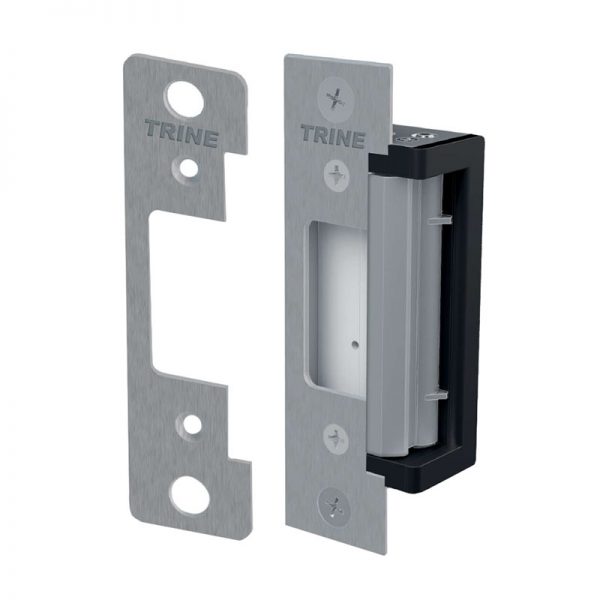

Trine 4300CC Electric Strike For Cylindrical Locks and Deadlatches

Usually Ships: 1-2 Business Days
  • For use with cylindrical locks and deadlatches
  • Fail-Secure, 12-24VAC/DC
  • Two 4-7/8″ faceplates (as shown)

Available Options:

Clear

Trine 4300CC Electric Strike For Cylindrical Locks and Deadlatches

The most flexible electric strike solution for cylindrical locks and deadlatches.

Includes 2 faceplates

  • All the features of the regular 4300 – for an even better price. (does not contain the long faceplates)
  • 1/4″ Horizontal Adjustment — The 4300 has a great 1/4″ horizontal adjustment included. Some competitor models require you to buy a more expensive model to get the same flexibility.
  • Four popular faceplates included — including the 4 most used faceplates for cylindrical lcoks and deadlatches
  • 1-1/16” Shallow backset — the electric strike solves depth problems, as with glass store fronts.
  • Low Current Draw — .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need.
  • The included trim skirt covers any gaps or irregularities on an install. Plus it matches the strike finish.
  • The 4300 electric strike latch solves the auxillery latchpin problems many other electric strikes run into.
  • Cutout Specification A115.1 (with Slight Jamb Modification)

Electric Strike Standards:

  • WH recognized for UL1034 Burglary Resistant
  • WH recognized for UL294 (6th Edition) listed
  • ANSI A156.5 – 1992 – 4-7/8″ x 1-1/4″ Fits
  • Grade 1 electric strike

made-in-usa

Brand

Finishes

BLK Black Powder Coat, DKBZ Dark Bronze Powder Coat, AL Aluminum Powder Coat, US32D (630) Satin Stainless Steel

Usage

Standard Duty

ANSI Grade

ANSI Grade 1

Fire Rating

Non-Fire-Rated

Voltage

12-24VAC/DC

Lock Type Compatibility

Cylindrical Lock, Deadlatch

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
