Trine 4300 Electric Strike For Cylindrical Locks and Deadlatches

Trine 4300 Electric Strike For Cylindrical Locks and Deadlatches

The most flexible electric strike solution for cylindrical locks and deadlatches.

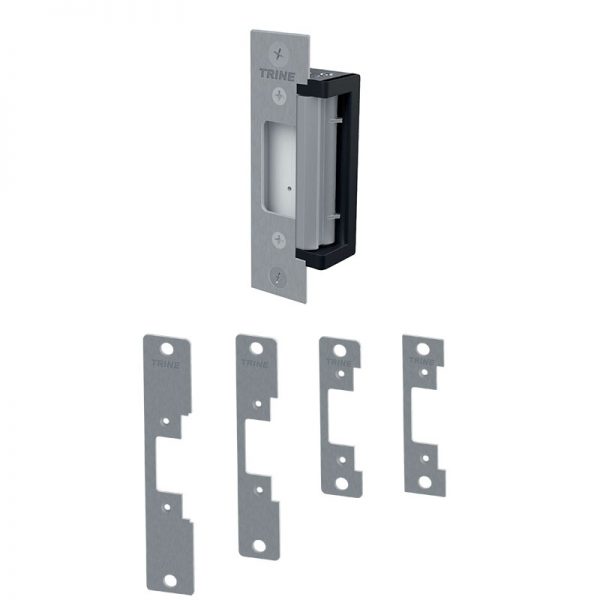

Includes the 4 most used faceplates to make specifying and installing this electric strike easy on any frame, especially aluminum.

• 1/4″ Horizontal Adjustment — The 4300 has a great 1/4″ horizontal adjustment included. Some competitor models require you to buy a more expensive model to get the same flexibility.
• Four popular faceplates included — including the 4 most used faceplates for cylindrical lcoks and deadlatches

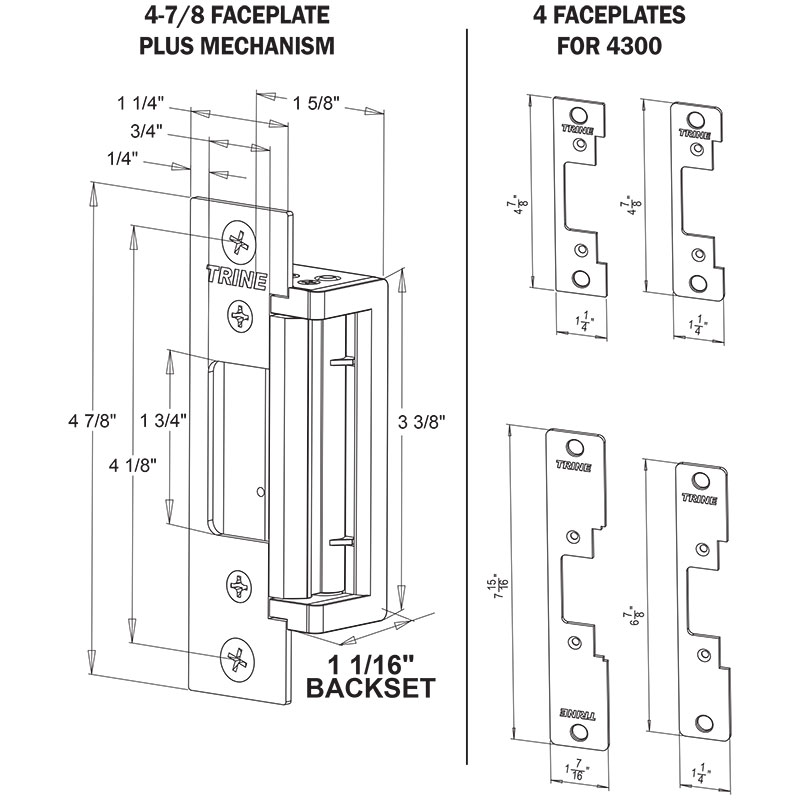

• 1-1/16” Shallow backset — the electric strike solves depth problems, as with glass store fronts.
• Low Current Draw — .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need.
• The included trim skirt covers any gaps or irregularities on an install. Plus it matches the strike finish.
• The 4300 electric strike latch solves the auxillery latchpin problems many other electric strikes run into.
• Cutout Specification A115.1 (with Slight Jamb Modification)

Electric Strike Standards:

• WH recognized for UL1034 Burglary Resistant
• WH recognized for UL294 (6th Edition) listed
• ANSI A156.5 – 1992 – 4-7/8″ x 1-1/4″ Fits
• Grade 1 electric strike
