Trine 323478LC Electric Strike Kit For Cylindrical Locks

Trine 323478LC 3000 Series Electric Strike Kit For Cylindrical Locks, Fail Secure

THE SMALLEST ELECTRIC STRIKE IN THE WORLD

The small 3000 series strikes pack a powerful punch. A Grade 1 Mechanism with up to 1,500 lbs of holding force. This is the most powerful strike you can get, a Grade 1 electric strike with just a 1″ total backset installation could not be easier.

The 323478LC electric strike includes the 234X Faceplate in addition to the current faceplates already included Trine Solution. With the Patented horizontal adjustment feature — Guaranteed not to move — and the Smallest electric strike faceplate in the world, this 3000 Series strike is your universal ANSI solution. (478-CCFP is no longer included in the 323478LC-32D)

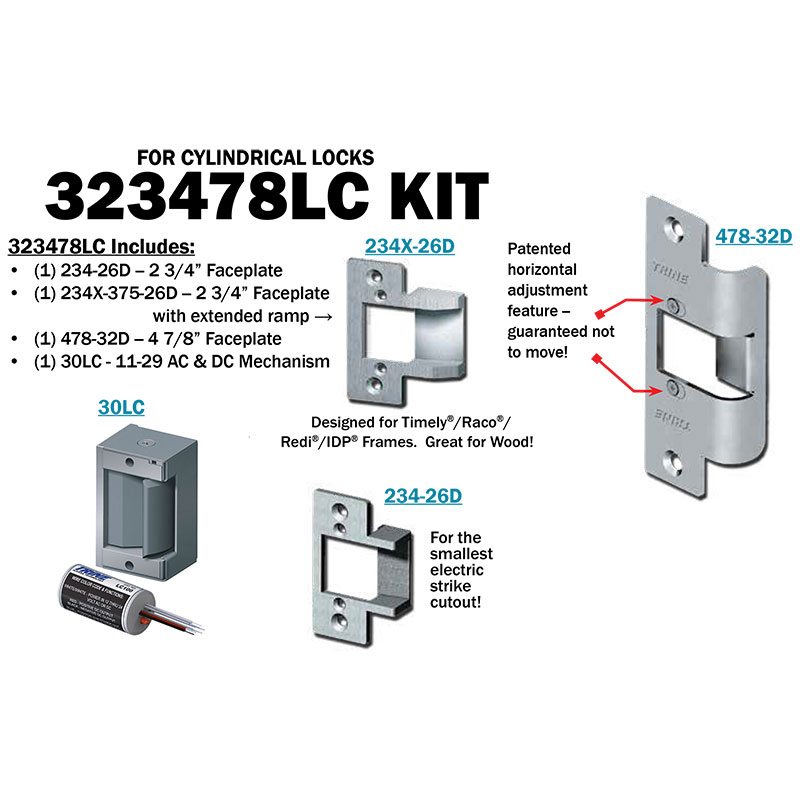

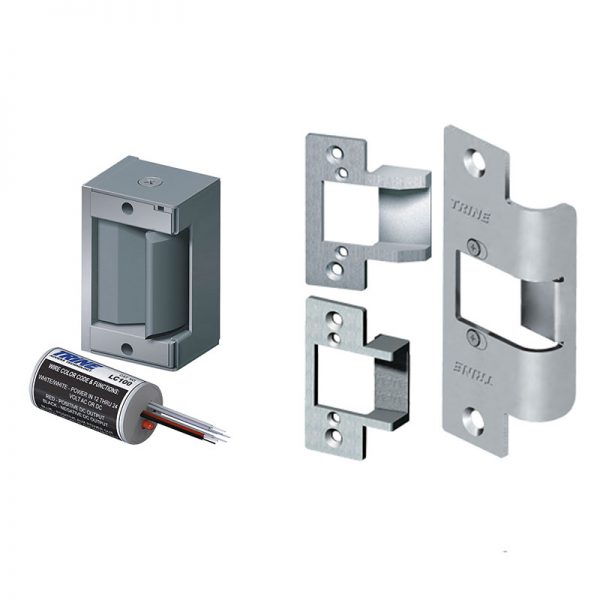

• Includes:
  • One (1) 234-26D Faceplate Faceplate
  • One (1) 234-234X Faceplate (Designed for Timely®/Raco®/Redi®/IDP® Frames)
  • One (1) 478-32D Faceplate
  • One (1) 30LC Mechanism
  • One (1) LC100 Line Conditioner
• Grade 1 Electric Strike — heavy duty construction, 500,000 + life cycles
• Solid stainless steel latch and locking mechanism
• Installs in metal, aluminum, or wood frames
• Fail secure – standard action (unlocks with power)
• Accepts up to 5/8” latch throw

LC100:

MUST USE LC100 WITH 323478LC AND 30LC – This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15′ of the mechanism.
