Trine 234X-375 – 3000 Series Electric Strike Faceplate, 2-3/4″ x 1-1/8″, 3/8″ Extended Lip

Usually Ships: 1-2 Business Days
  • Faceplate only, for use with 3000 Series strike body
  • For use with cylindrical locksets up to 5/8″ throw
  • Extended ramp to accommodate additional face of Timely frames (or similar)

Available Options:

Clear

Trine 234X-375 – 3000 Series Electric Strike Faceplate, 2-3/4″ x 1-1/8″, 3/8″ Extended Lip, For Timely Frames (or similar) Application

Standard ANSI prep features an extended ramp to accomodate additional frame face of Timely or RediFrame. Ramp is extended 3/8″. For new or replacement installations. Use with cylindrical locksets and deadlatches having up to 5/8″ throw, based on 1/8″ door gap.

  • Match with any 3000 Mechanism: 3012, 3024, 30LC, 30RS

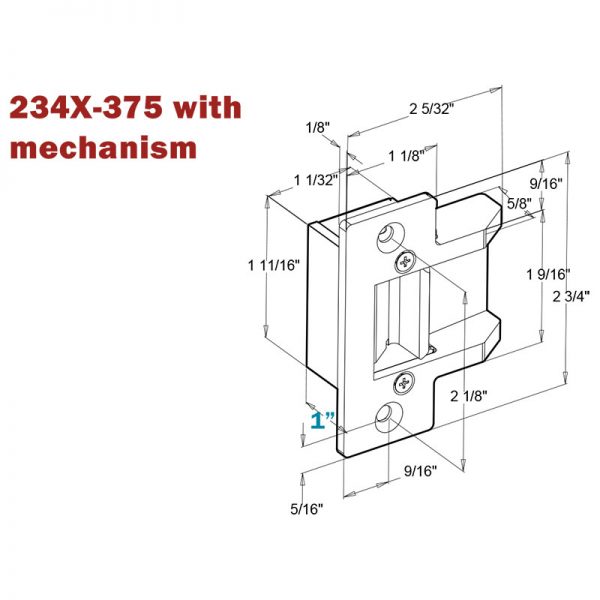

  • ANSI 2 3/4″ Standard • Face Plate 2-3/4″ x 1-1/8″ • Mortise Backset 1″ • Cavity Depth 1/2″ • Cavity Width 5/8″ • Cavity Height 1 1/8″
  • Ramp is extended 3/8”
  • Smallest faceplate for your Timely Frames installation
  • Grade 1 Faceplate
  • 80% less cutting of the frame
  • Modular System: Always be prepared, go Modular. Use ANY of the 9 faceplates in the 3000 series with any 3012, 3024, 30LC or 30RS mechanism
Brand

Finishes

Dark Bronze Powder Coat, US3 (605) Bright Brass, US26D (626) Satin Chrome

Faceplate

2-3/4" x 1-1/8"

Lock Type Compatibility

Cylindrical Lock, Deadlatch

Part Type

Electric Strike Faceplate

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
