Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

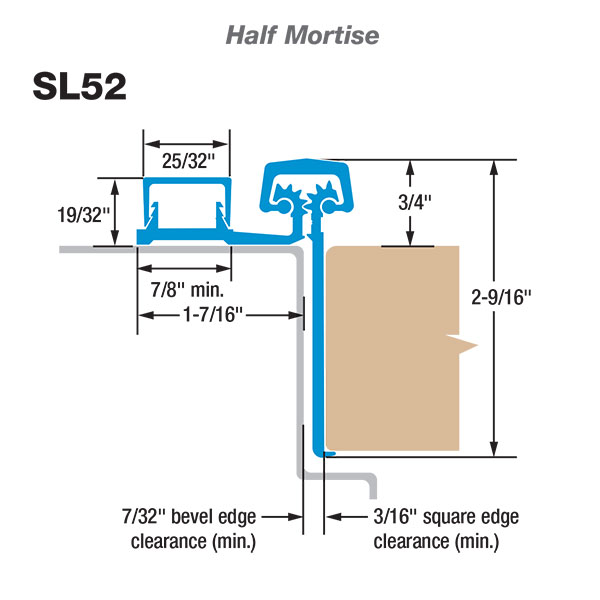

- Frame leaf fits narrow 7/8” frame face
- Door edge protector
- Tamper-resistant, removable frame leaf cover
- For 1-3/4″ doors
- SL52 HD geared continuous hinges are BHMA Grade 1 certified
- Lifetime lubrication
- Anodized after machining
- Consistent templating
Clear Anodized Aluminum, Dark Bronze Anodized Aluminum
83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
|Load / Frequency||
For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame and door.
ANSI/BHMA A156.26-2006 Grade 1
All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost
|Continuous Hinge Type||
|Buy American Act Compliance||
Meets Buy Amercian Act – Made in USA
