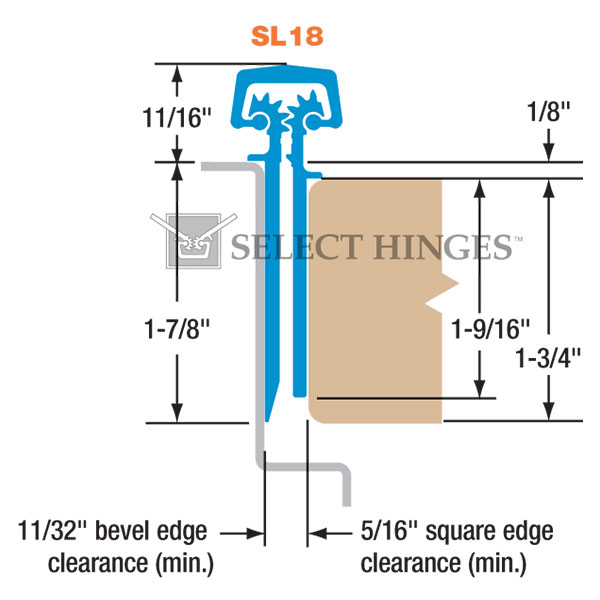

Concealed edge mount architectural grade aluminum hinges. No mortise required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.
- Beveled frame leaf allows for weather-stripping or smoke seal.
- Ideal for storefront applications.
- 1/8″ door inset. For 1-3/4″ doors.
- SL18 HD geared continuous hinges are BHMA Grade 1 certified.
- Lifetime lubrication
- Anodized after machining
- Consistent templating
Clear Anodized Aluminum, Black Anodized Aluminum, Dark Bronze Anodized Aluminum
83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
|Load / Frequency||
For 1-3/4" doors, 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Heavy Duty – Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame.
ANSI/BHMA A156.26-2006 Grade 1
All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost
|Continuous Hinge Type||
Full Mortise (Concealed)
|Buy American Act Compliance||
Meets Buy Amercian Act – Made in USA
