Schlage HL6 Hospital Push-Pull Latch

Usually Ships: 1-2 Business Days
  • UL listed for all single labeled metal or wood doors
  • Passage function, latchbolt retracted by paddle from either side
  • Meets ADA requirements, UL Listed

Available Options:
Clear

Product Overview

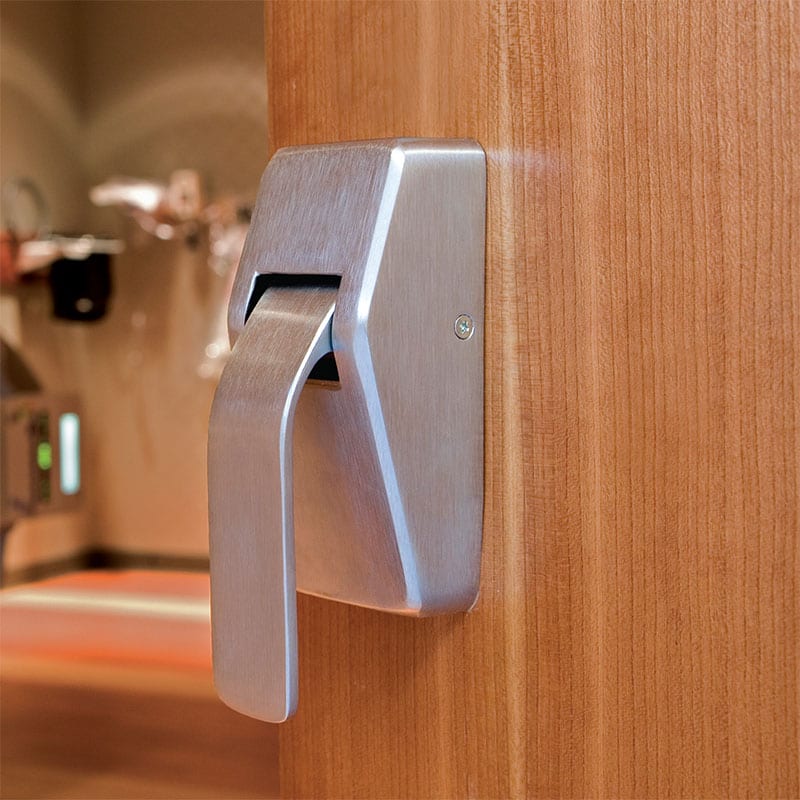

Schlage HL6 Hospital Push/Pull Latch, Passage Function, Spring Latch (Unguarded)

The HL6 push/pull hardware is a durable and versatile tubular latching solution for commercial and institutional settings. The traditional design has a short throw angle, allowing the door to be opened with an easy push or pull action, even when hands are not free.

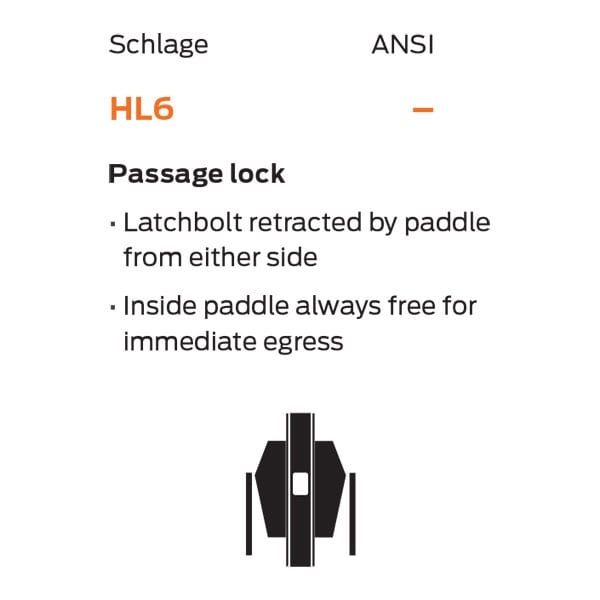

Passage Function: Latchbolt retracted by paddle from either side. Inside paddle always free for immediate egress.

  • Formerly known as Glynn Johnson HL6
  • Quiet functionality
  • Non-handed
  • UL listed for all single labeled metal or wood doors
Brand

Finishes

626 Satin Chrome, 626AM Satin Chrome Antimicrobial
Function

Passage
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Backset

2-3/4", 5"
Strike

2-3/4" T-Strike, 4-7/8" ASA Strike
Handing

Non-Handed
Door Thickness

1-3/4"
